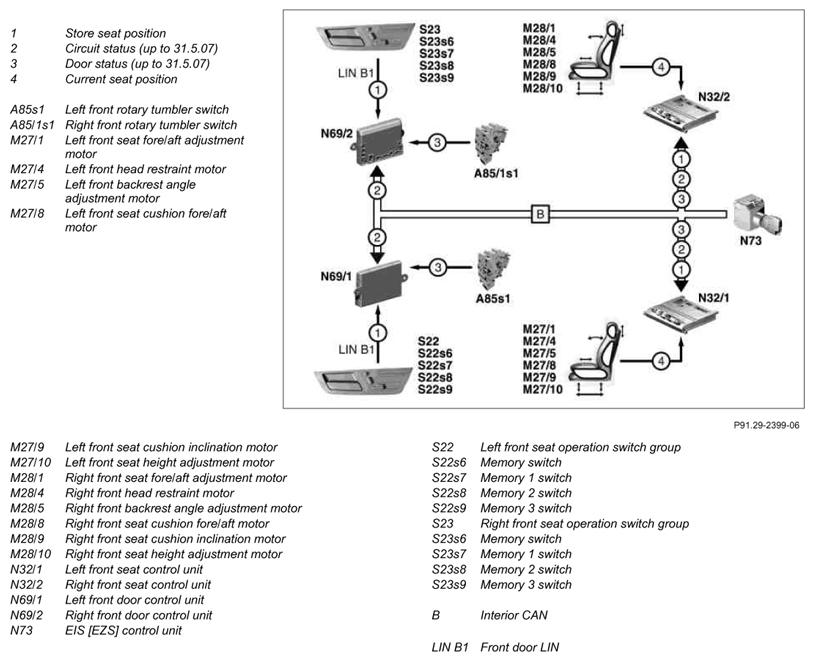

Store seat position, function - GF91.29-P-2004SX
MODEL 221.0 /1 with CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 8 Vordersitze
Shown on vehicle up to 31.5.07
Function requirements
- Circuit 15R On or respective door open (up to 31.5.07)
Function
Three different seat positions each can be manually stored on the driver and front passenger sides.
On the driver side, the instantaneous position of the steering column and outside mirrors are additionally stored.
There are two means of storing the positions:
- Press and hold the memory switch and parallel to this operate memory 1, 2 or 3 switch briefly or
- press the memory switch for at least 40 ms and the memory 1, 2 or 3 switch briefly within 3 s.
The request is read in over the front door LIN from the respective door control unit and placed on the interior CAN. The seat settings are stored in the respective seat control unit.
Automatic storing
When the engine is switched off (as from circuit 15C) and the driver door is closed, the current setting for the driver seat and the position of the steering column and outside mirrors are automatically stored (last driving position).
| Front seat adjustment motor, component description | M27/1, M27/4, M27/5, M27/8, M27/9, M27/10, M28/1, M28/4, M28/5, M28/8, M28/9 and M28/10 | GF91.29-P-5214SX | |
| Left front seat control unit, component description | N32/1 | GF91.29-P-5230SX | |
| Right front seat control unit, component description | N32/2 | GF91.29-P-5240SX | |
| Driver-side front door control unit, component description | N69/1 | GF72.29-P-6000SX | |
| Passenger-side front door control unit, component description | N69/2 | GF72.29-P-6010SX | |
| Electronic ignition/starter switch control unit (EIS), component description | N73 | GF80.57-P-6000SX | |
| Front seat adjustment switch group, component description | S22, S23 | GF91.29-P-5220SX |
