Pneumatic pump for dynamic seat, component description - GF91.25-P-5204SX
MODEL 216.3, 221.0 /1 with CODE (432) Left and right dynamic multicontour seat up to Model Year 8
Shown on model 221.0

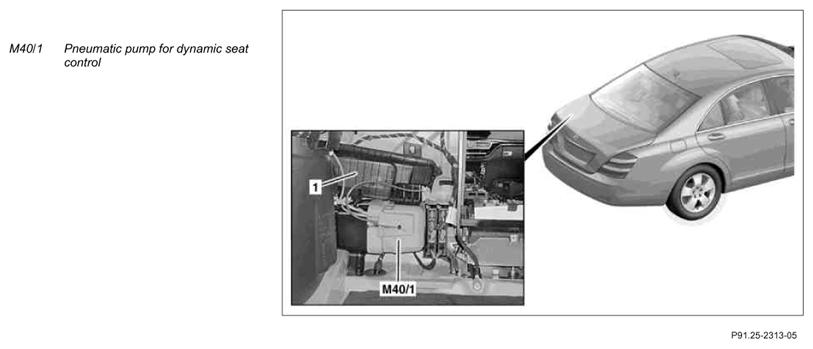

Location
The pneumatic pump is located below the reservoir (1) on the left side of the trunk behind the paneling.
Task of the pneumatic pump
- Pressure supply of the dynamic seat system
- Actuation of the solenoid valve to expel compression moisture in the reservoir
- Automatic cutout after 60 s of continuous operation
- Leakage recognition of the pneumatic system
- Pressure monitoring of the reservoir by means of a sensor
Discrete inputs
- Circuit 31
- Circuit 30
CAN signals
The pneumatic pump is an interior CAN participant.
