PRE-SAFE, networking of components - GF91.40-P-0001-02SX

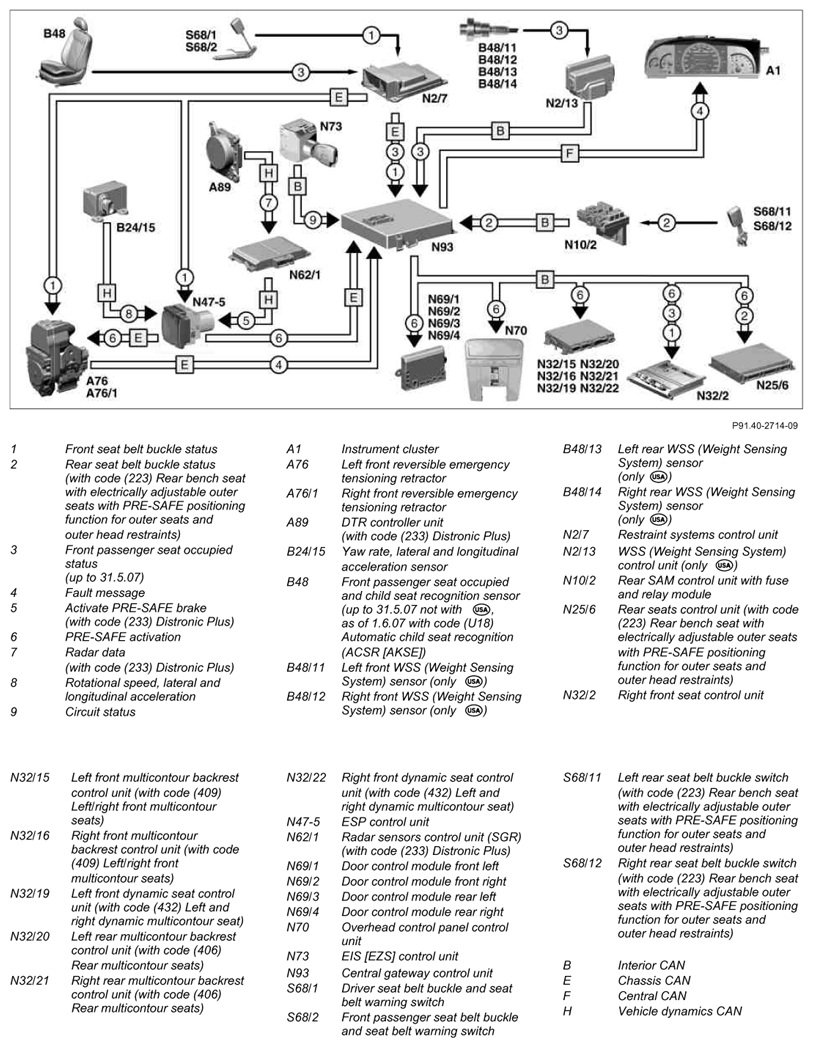

Fig 1: Networking PRE-SAFE Components

G07601748

Courtesy of MERCEDES-BENZ USA
