Multicontour seat control unit (MCS), component description - GF91.25-P-5201SXA
MODEL 221.0 /1 with CODE (406) Rear multicontour seat up to Model Year 8
Illustrated on model 221.0
Location

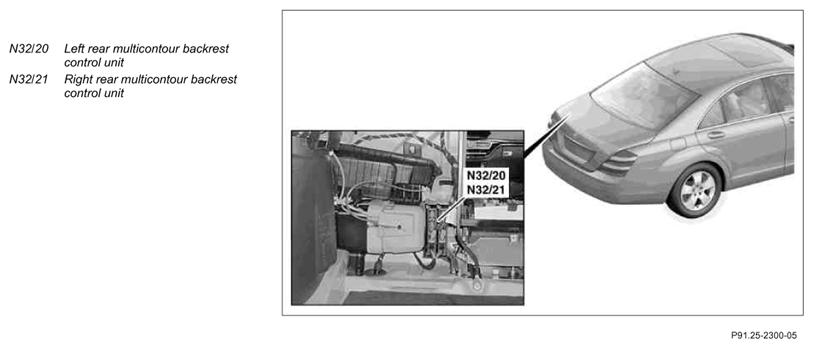

The rear multicontour backrest control unit is located behind the left panel in the luggage compartment.
Task
- Actuation of the seat hardness and seat contour
- Actuation of the dynamic lumbar support (massage)
- Actuation of the pressure valves for the seat backrest
- Adjusting and storing air cushion pressure values
Discrete inputs
- Circuit 31 and circuit 30
- Pressure sensor valves
- Massage valves
Discrete outputs
- Pressure sensor valves
- Massage valves
CAN signals
The rear multicontour backrest control units are interior CAN participants; in the process, the rear seats control unit, component description serves as an interface.
