Multicontour seat control unit (MCS), component description - GF91.25-P-5201SX
MODEL 216.3, 221.0 /1 with CODE (409) Left/right front multicontour seat up to Model Year 8
Illustrated on model 221
Location

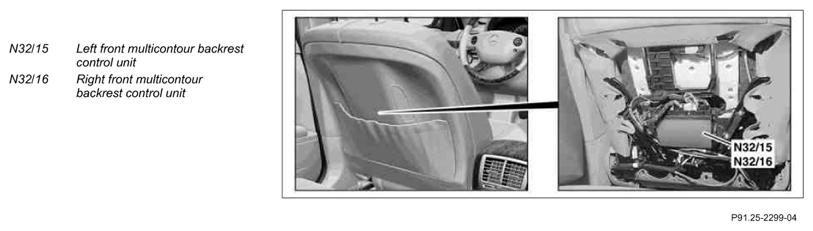

The multicontour backrest control units are located in the respective front seat backrests.
Task
- Actuation of the multicontour seat pneumatic pump (M40)
- Adjustment of seat hardness and seat contour
- Actuation of the pressure valves for seat backrest and seat cushion as well as shoulder support, lateral support, and upper leg support
- Adjusting and storing air cushion pressure values
Discrete inputs
- Circuit 31 and circuit 30
- Pressure valves
Discrete outputs
- Pressure valves
CAN signals
The multicontour backrest control units are interior CAN participants, whereby the left front seat control unit (N32/1) and the right front seat control unit (N32/2) serve as interface.
