Adjust rear multicontour seats, function - GF91.25-P-2003SXA

MODEL 221.0 /1 with CODE (406) Rear multicontour seat up to Model Year 8

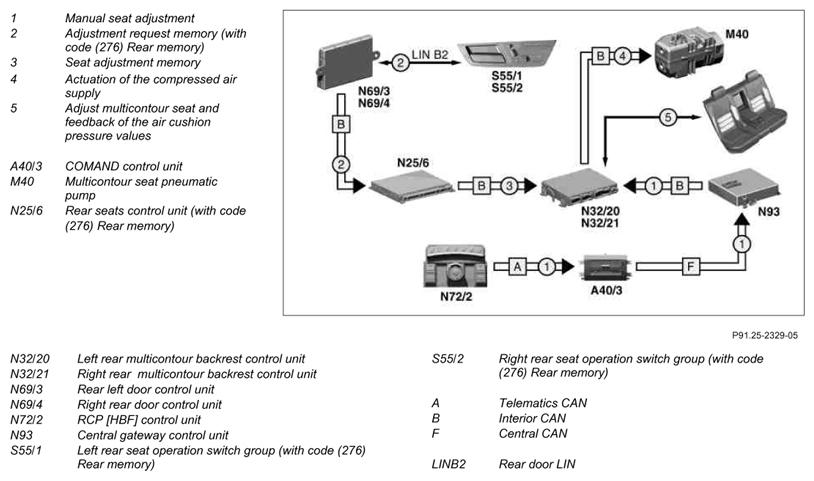

Fig 1: Adjust Rear Multicontour Seats Function Diagram

Courtesy of MERCEDES-BENZ USA

Function requirements:

C. 15R On

Function

The individual multicontour seats (MCS) can be adjusted manually via the RCP [HBF] control unit.

On vehicles with code (276) Rear memory, the rear MCS can be automatically adjusted via the left rear seat operation switch group or via the right rear seat operation switch group, or the adjusted positions can be stored.

The air cushions are located as follows:

in side area of seat backrest
in lumbar support area (top, center, and bottom) of the seat backrest

Lumbar support = curvature of spine in lumbar region.

Manually adjust function sequence

By pressing the left seat selection button (N72/2s12) or the right seat selection button (N72/2s13) in the RCP [HBF] control unit, the corresponding MCS can be selected.

The air cushions are adjusted manually by filling or purging them via the backrest side seat contour button (N72/2s14), the lumbar support seat contour button (N72/2s15) or the lumbar support height adjustment button (N72/2s16).

Automatically adjust function sequence

When the corresponding memory switch (S55/1s7, S55/1s8, S55/1s9, S55/2s7, S55/2s8 or S55/2s9) in the particular rear seat operation switch group is pressed and held depressed, the system moves to the corresponding seat and air cushion setting.

When the corresponding memory switch is released, the adjustment process is aborted immediately.

COMAND control unit, component description	A40/3 On vehicles without code (498) Japan version and without code (494) USA version	GF82.85-P-3136SX
	On vehicles with code (498) Japan version	GF82.85-P-3136SXJ
	On vehicles with code(494) USA version	GF82.85-P-3136SXU
Multicontour seat pneumatic pump (MCS), component description	M40	GF91.25-P-5205SX
Rear seats control unit, component description	N25/6 On vehicles with code (276) Rear memory	GF91.29-P-5250SXA
Multicontour seat control unit (MCS), component description	N32/20, N32/21	GF91.25-P-5201SXA
Driver-side front door control unit, component description	N69/1	GF72.29-P-6000SX
Passenger-side front door control module, component description	N69/2	GF72.29-P-6010SX
RCP [HBF] control unit, component description	N72/2	GF54.21-P-4510SX
Central gateway control unit, component description	N93	GF54.21-P-4170SX
Rear seat adjustment switch group, component description	S55/1, S55/2 On vehicles with code (276) Rear memory	GF91.29-P-5216SXA
