Adjust front multicontour seats, function - GF91.25-P-2002SX
MODEL 216.3, 221.0 /1 with CODE (409) Left/right front multicontour seat up to Model Year 8
Function requirements:
- Terminal 15R ON or
- Circuit 15 ON
Function

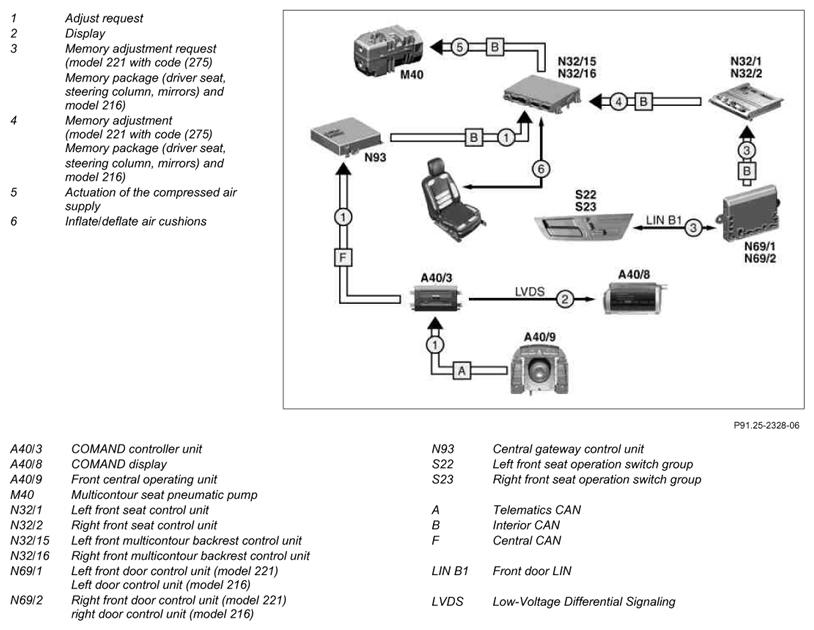

The multicontour seats (MCS [MKS]) can be individually configured menu-assisted over the front central operating unit. This is shown in the COMAND display.
Pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit activates the seat adjustment submenu in the COMAND display.
The turn/push control (A40/9s11) can be used to adjust the following air cushions:
- Air cushions in side areas of seat cushion
- Air cushions in upper leg area of seat cushion
- Air cushions in side areas of backrest
- Air cushions in lumbar area (top, center and bottom) of backrest
- Air cushions in shoulder area of backrest
On model 221 with code (275) Memory package (driver seat, steering column, mirrors) and on model 216, the current seat setting can be stored or called up using the seat operation switch group.
Additionally, the setting of the steering column and the outside mirrors is stored on the driver-side.
| COMAND controller unit, component description | A40/3 Model 221 without code (498) Japan version and without code (494) USA version |
GF82.85-P-3136SX | |
| Model 221 with code (494) USA version | GF82.85-P-3136SXU | ||
| Model 221 with code (498) Japan version | GF82.85-P-3136SXJ | ||
| Cockpit central display, component description | A40/8 Model 221 |
GF54.30-P-6100SX | |
| Front central operating unit, component description | A40/9 Model 221 |
GF54.21-P-4500SX | |
| Multicontour seat pneumatic pump (MCS), component description | M40 | GF91.25-P-5205SX | |
| Left front seat control unit, component description | N32/1 | GF91.29-P-5230SX | |
| Right front seat control unit, component description | N32/2 | GF91.29-P-5240SX | |
| Multicontour seat control unit (MCS), component description | N32/15, N32/16 | GF91.25-P-5201SX | |
| Driver-side front door control unit, component description | N69/1 Model 216 |
GF72.29-P-6000SC | |
| Model 221 | GF72.29-P-6000SX | ||
| Passenger-side front door control unit, component description | N69/2 Model 216 |
GF72.29-P-6010SC | |
| Model 221 | GF72.29-P-6010SX | ||
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX | |
| Front seat adjustment switch group, component description | S22, S23 | GF91.29-P-5220SX |
