Front passenger power window switch, component description - GF72.29-P-6042SX
MODEL 221.0 /1, 216.3 up to Model Year 8
Illustrated on model 221

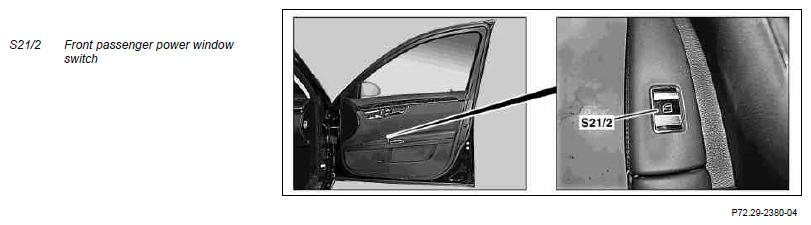

Location
The power window switch is located in the front passenger door armrest.
Task
The power window switch transmits the adjustment requests for the right front power window motor (M10/4) to the right front door control unit (N69/2) (model 221) or the right door control unit (N69/2) (model 216) using voltage-coded signals.
