Component description for COMAND controller unit - GF82.85-P-3136LE

MODEL 216, 221 with CODE (526) COMAND with single DVD drive (without navigation) as of model year 2009 /YoM 08

MODEL 216, 221 with CODE (527) COMAND APS with single DVD drive (with navigation) as of model year 2009 /YoM 08

Shown on model 221 up to 31.5.2009

Location

The COMAND controller unit is installed into the center console.

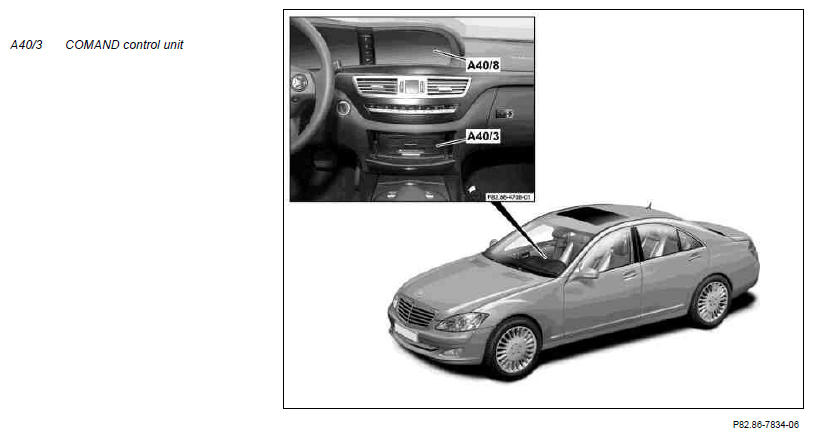

Fig 1: Locating Command Control Unit
G07599874Courtesy of MERCEDES-BENZ USA

Shown on model 221 up to 31.5.2009 with code (814) DVD changer

Location

The COMAND controller unit is installed into the center console.

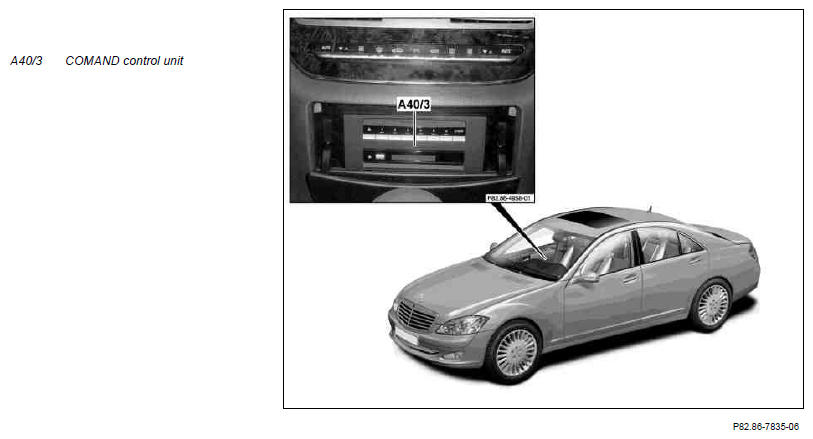

Fig 2: Locating Command Control Unit (With DVD Changer)
G07599875Courtesy of MERCEDES-BENZ USA

Task

The COMAND controller unit fulfills the following tasks:

Computer for entertainment and communication systems

The COMAND controller unit provides the user with a structured and standard interface on the COMAND display (A40/8) (without code (867) SPLITVIEW) or the SPLITVIEW display (A40/10) (with code (867) SPLITVIEW).

The COMAND controller unit generates standard and user-friendly displays for all the individual components integrated into the system.

Reading in of signals

The input factors are read in via the following connections:

Direct line

The following signals are read in via direct lines:

Controller Area Network (data bus/CAN bus) (CAN)

The signals are read in over the telematics CAN (CAN A) and central CAN (CAN F). The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Media Oriented System Transport (MOST)

The COMAND controller unit communicates with the following control units via MOST depending on the equipment specification:

Evaluation of input factors

The input factors are processed and evaluated by the COMAND controller unit.

Actuates output media

The output media are actuated through the following connection:

Direct line

The following output media are actuated over direct lines:

IMPORTANT Low voltage differential signaling lines are used to transmit picture and video signals.

The following system components are actuated internally:

CAN

The signals are sent over the telematics CAN to the central CAN. The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

MOST

The COMAND controller unit communicates with the following control units via MOST depending on the equipment specification:

Design

Integrated into the COMAND controller unit are the following:

Diagnosis

The COMAND controller unit acts as a diagnostic interface for all control units on the MOST and telematics CAN. The faults that have occurred can be read out using the diagnostic CAN (CAN D) and the data link connector (X11/4).

Variants

COMAND controller unit

REFER TO SYSTEM WIRING DIAGRAMS Cockpit Management and Data System (COMAND) control unit wiring diagram Model 216
Up to modification year 09
PE82.85-P-2101-97CAA
Model 216
As of YoM 09, HIGH Class
Sheet 1
PE82.85-P-2101-97CAE
Model 216
As of YoM 09, HIGH Class
Sheet 2
PE82.85-P-2101-97CAG
Model 221
Up to modification year 09
PE82.85-P-2101-97SAA
Model 221
As of YoM 09, HIGH Class sheet 1
PE82.85-P-2101-97SAE
Model 221
As of YoM 09, HIGH Class
Sheet 2
PE82.85-P-2101-97SAG
