Cruise control (CC) function - GF30.30-P-0001M

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230 up to Model Year 8

ENGINE 275.953 in MODEL 216, 221 up to Model Year 8

ENGINE 275.954 in MODEL 230 up to Model Year 8

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230 up to Model Year 8

ENGINE 275.982 in MODEL 216, 221 up to Model Year 8

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

Illustrated model 215, 220, 230, 240

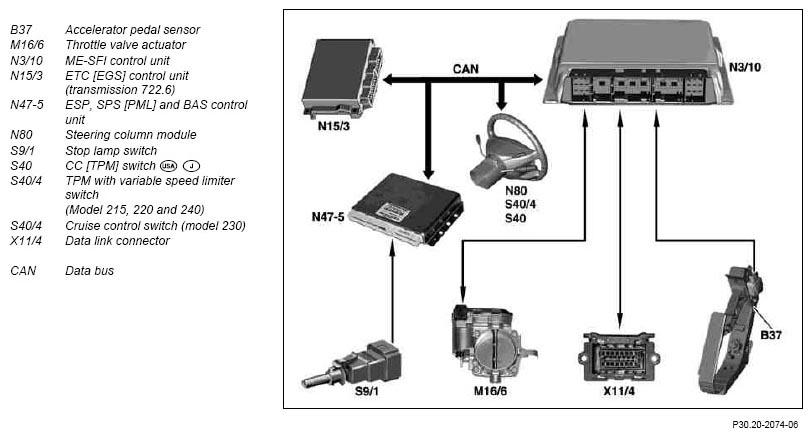

Fig 1: Cruise Control Function Diagram

Courtesy of MERCEDES-BENZ USA

The cruise control function must maintain the preselected speed constant irrespective of the load condition, without the accelerator pedal being operated.

The cruise control function can be activated at speeds above 40 km/h with the cruise control switch. Using the input signals and the position of the cruise control switch, the engine control unit actuates the throttle valve actuator for the cruise control function.

The cruise control mode is switched off by:

Moving the cruise control switch into OFF position
Actuation of the service brake (CAN message)
Moving selector lever into position "N"
Control intervention function of the traction system.

The signals from the cruise control switch are detected by the steering column module and transmitted via the CAN data bus to the engine control unit.

The speed signal is transmitted by the ESP control unit via the CAN to the engine control unit.

ME-SFI control unit, location/task/design/function		GF07.61-P-5000M
Cruise control switch, location/task/design/function	With cruise control or Distronic	GF30.30-P-3100M
Variable cruise control switch, location/task/design/function	With cruise control or Distronic except	GF30.30-P-3101M
Throttle valve actuator, location/task/design/function		GF30.22-P-4101M
Variable speed limiter, function	Additional cruise control function except	GF30.30-P-3001M
ETC control unit, location/task	Selector lever position information P/N and drive position engaged. Transmission 722.6	GF27.19-P-4012G
