Component description for radar sensors control unit - GF30.30-P-3301LEB

MODEL 216.3, 221.0 /1 up to 31.8.10 with CODE (234) Blind Spot Assist as of model year 2009/ YoM 08

MODEL 221.0 /1 (except 221.095 /195) with CODE (239) Autonomous intelligent cruise control Plus Light as of model year 2011/ YoM 10

MODEL 221.095 /195 with CODE (234) Blind Spot Assist as of model year 2011

Shown on model 221

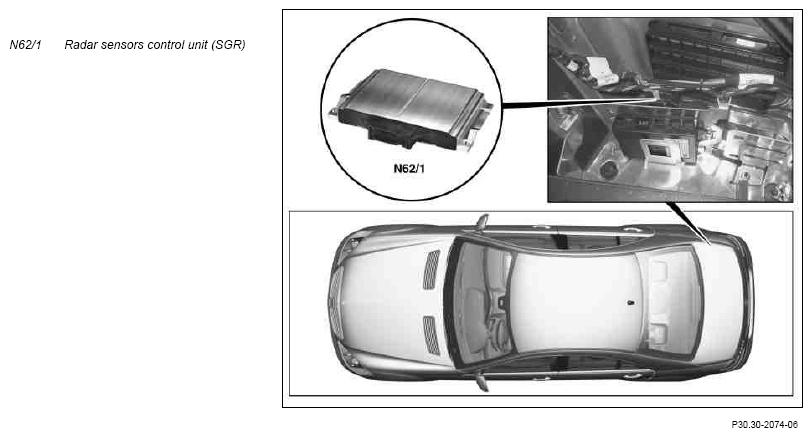

Fig 1: Locating Radar Sensors Control Unit
G07587462Courtesy of MERCEDES-BENZ USA

Location

The radar sensors control unit is located at the bottom right side of the luggage compartment.

Task

The radar sensors control unit is the evaluation unit of the short range radar for vehicles with the following equipment installed:

The radar sensors control unit also evaluates data from the long range radar for vehicle with the following equipment installed:

To do this the radar sensors control unit fulfills the following tasks:

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

Chassis CAN

The radar sensors control unit reads in the following information via the chassis CAN:

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Vehicle dynamics CAN

The signals from the following components are read in via the vehicle dynamics CAN:

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Sensor CAN

The signals of the following components are read in via the sensor CAN:

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors are evaluated by the integrated microprocessors and the relevant components are then actuated.

IMPORTANT Due to the high performance of the radar sensors control unit, it is equipped with two microprocessors (clock frequency 40 MHz each).

Control of systems

Output of signals

The signals are issued over the following connections:

Chassis CAN

For code (233) DISTRONIC PLUS, the radar sensors control unit evaluates all input data and then takes on complete control of the vehicle's longitudinal movements, by sending signals for acceleration, deceleration and gear switching via the chassis CAN. Warning tones and display in the IC are also actuated by the radar sensors control unit and the PRE-SAFE measures are requested via the chassis CAN.

For code (234) Blind Spot Assist the radar sensors control unit actuates the left Blind Spot Assist readiness and warning indicator (M21/1e2) and the right Blind Spot Assist readiness and warning indicator (M21/2e2).

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Vehicle dynamics CAN

As an example, for code (233) DISTRONIC PLUS the radar sensors control unit transmits the following signal via the vehicle dynamics CAN:

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Sensor CAN

The radar sensors control unit transmits the following signals via the sensor CAN:

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

REFER TO SYSTEM WIRING DIAGRAMS radar sensors control unit wiring diagram Model 216 up to 31.8.09 PE30.30-P-2102-97CAA
Model 216 as of 1.9.09 PE30.30-P-2102-97CAC
Model 221 up to 31.8.09 PE30.30-P-2102-97SAA
Model 221 as of 1.9.09 PE30.30-P-2102-97SAC
