Navigation: Unable To View Map Screen (82.85/489B)

Publication date: 2006-07-17
Reference number: 82.85/489B

NAVIGATION: UNABLE TO VIEW MAP SCREEN

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-B-82.85/489B, Date of Issue: July 17, 2006

MERCEDES-BENZ:	Model 221.171; Model Year 2007
GROUP:	82 - Electrical System - Body

Superceded Bulletin(s): P-B-82.85/489A, Date of Issue: March 7, 2006

SUBJECT

Model 221.171

Model Year 2007

Navigation: Unable to View Map Screen

SERVICE INFORMATION

If you receive customer reports in the above model vehicle that when entering the navigation mode, there is an error message asking that a navigation DVD with map software be inserted instead, this may be caused by two separate issues. To assist in identifying the issue, go to the Navigation screen on the COMAND Head Unit and compare to Fig 1 and Fig 2.

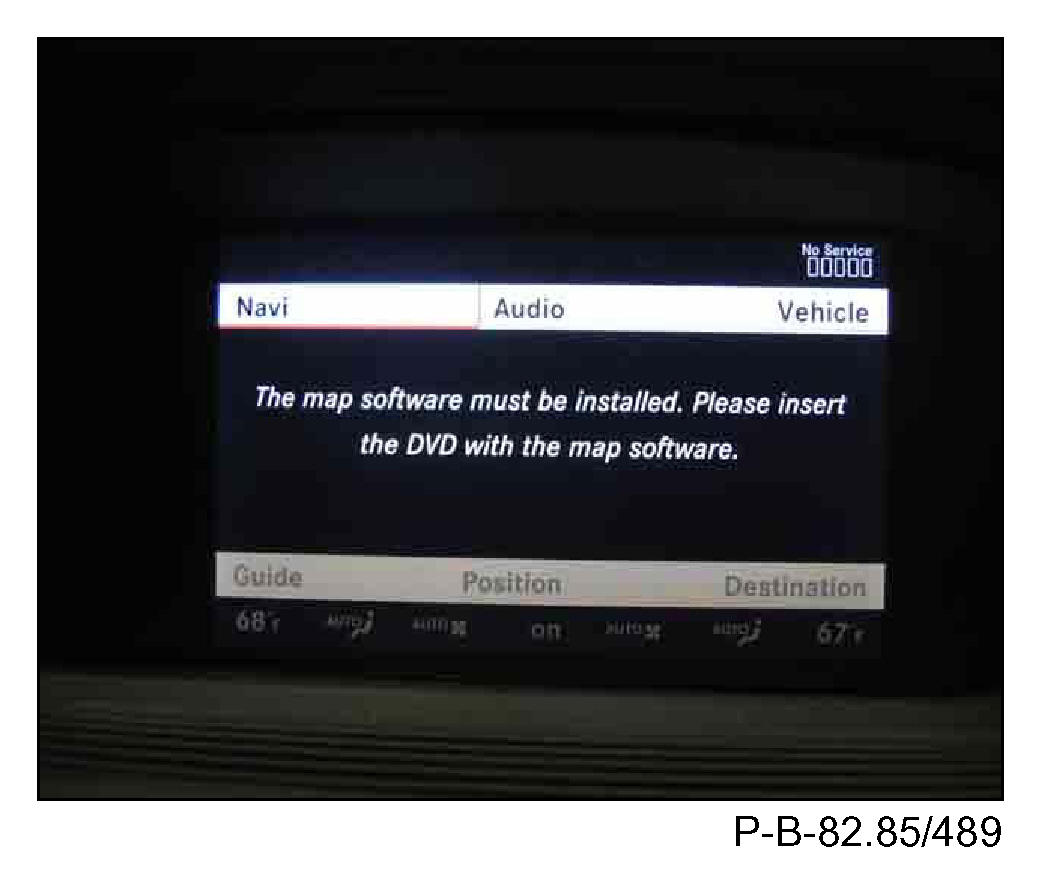

Fig 1: Vehicle With "National Version" Not Set To U.S.A./Canada (Note Line 2 Error Message)

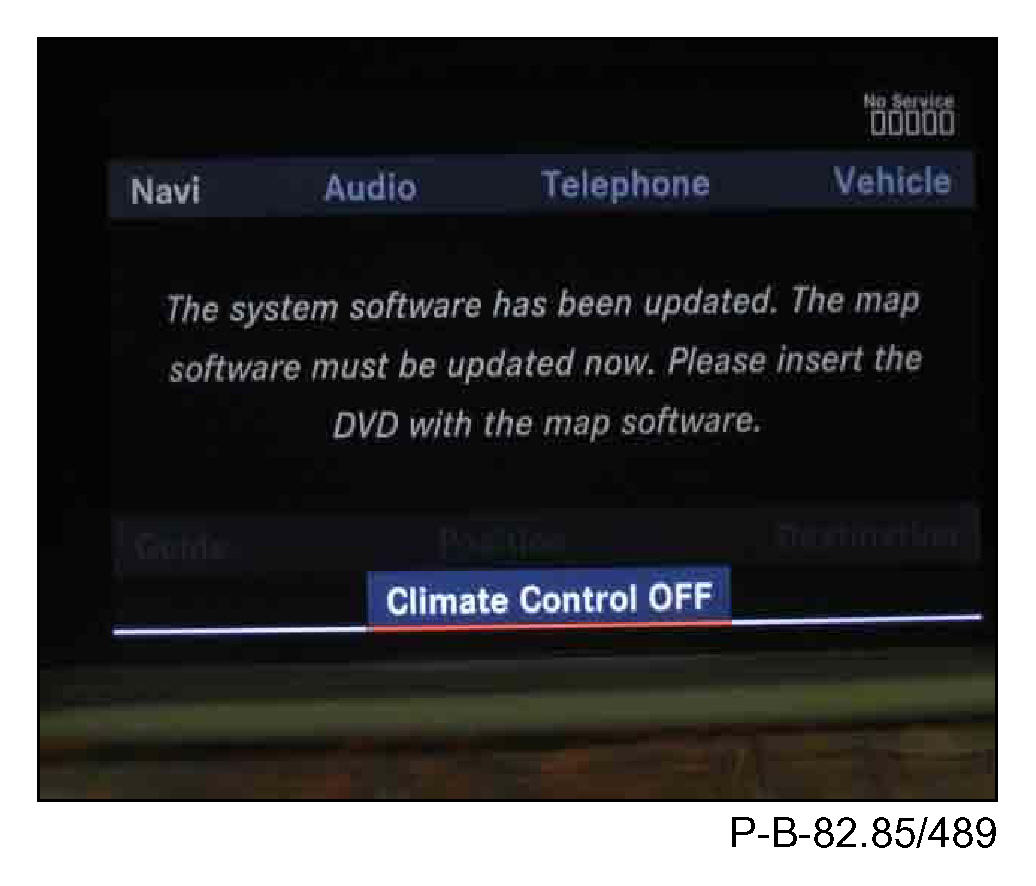

Fig 2: Vehicle With Non-Functioning Hard Drive (Note Line 3 Error Message)

Condition 1 - National Version Not Set (Fig 1)

The "National Version" has not been set for COMAND Head unit installed in the vehicle.

NOTE: A new head unit will exhibit this condition as well until the below procedure is performed.

Using Star Diagnosis 01/06 with AddOn ID 2006-01-27-0514 and AddOn ID 2006-02-13-0523 to 04/06 use the following procedure to set the version and bring up the preinstalled database on the hard drive.
Cars -> S-Class -> F3 -> 221 -> F3 -> F2 -> Control Units -> F3 -> Information and Communication -> F3 -> Audio, Video, Navigation and Telecomunication -> F3 -> COMAND -> F3 -> Control Unit Adaptations -> F3 -> Reading Coding and Change if Necessary -> F3 -> National Version -> F3 -> USA, Canada -> F5

Condition 2 - Non-Functioning Hard Drive (Fig 2)

The hard drive is non-functional in the COMAND Head Unit and the COMAND needs to be replaced.

Using Star Diagnosis 01/06 with AddOn ID 2006-01-27-0514 and AddOn ID 2006-02-13-0523 to 04/06 use the following procedure to variant code the head unit using the automatic takeover if possible.
Variant Coding with Automatic Takeover

NOTE: Please use Automatic Takeover in Star Diagnosis if possible.
Use the following procedure to complete the variant coding and replacement of the COMAND Head Unit.
Cars -> S-Class -> F3 -> 221 -> F3 -> F2 -> Control Units -> F3 -> Information and Communication -> F3 -> Audio, Video, Navigation and Telecomunication -> F3 -> COMAND -> F3 -> Initial Startup -> F3 -> Initial Startup with automatic takeover or settings of previous control unit -> F3 -> F2 -> F3 (To read settings of existing head unit)
Replace head unit, per WIS document AR82.85-P-1100SX
Continue with SDS path: F3 (to transfer settings to new head unit) -> Hardisk: Version 01/2006(2005- 12-12) -> F3 (Control module programming) -> F2 (Coding) -> F2 -> F9 (To erase fault codes) -> "Enter repair order, Name of tester, and operation number" -> F2
Check that the Central Gateway (CGW) is coded for the original vehicle option list:
1. Follow the path: Control Units -> Information and Communication -> Audio, video, navigation and telematics -> COMAND -> control unit adaptation -> Read coding and change if necessary -> Automatically adjust vehicle-specific and special equipment-specific codings.
  NOTE: This screen will display a list of coding options that are set automatically and a list of options that must be coded directly into the CGW.
2. Press F2 to restart the optical ring
3. Read and verify the coding settings which are now adopted from the CGW.
4. Exit out of SDS and disconnect from the diagnosis port
5. Power up the COMAND and use the Central COMAND Controller and check that all options are available.
Follow instructions "Condition 1 - National Version Not Set" for setting the national version.

PARTS INFORMATION

Qty.	Part Name	Part Number
1	COMAND USA with DVD changer	A221 870 01 87

NOTE: The following allowable labor operations should be used when submitting a warranty claim for this repair

IN CASE OF WARRANTY

Operation: Short test, perform (54-1011)

Control unit - ...... code (after short test), perform (54-0992)

Control unit for COMAND, replace (after check) (82-7404)

WARRANTY INFORMATION

Damage Code	Operation Number	Time (hrs.)	Model Indicator (s)
Condition 1: 82851 EA	54 1011	0.3 hrs.	AA
Condition 1: 82851 EA	54 0992	0.1 hrs.	AA
OR
Condition 2: 82757 E9	54 1011	0.3 hrs.	AA
	82 7404	0.3 hrs.	AA
	54 0992	0.1 hrs.	AA
