Lock, function - GF80.61-P-2010GZ

MODEL 164 with CODE (889) Keyless Go.

Illustrated on model 164.1, function sequence for door handle control point

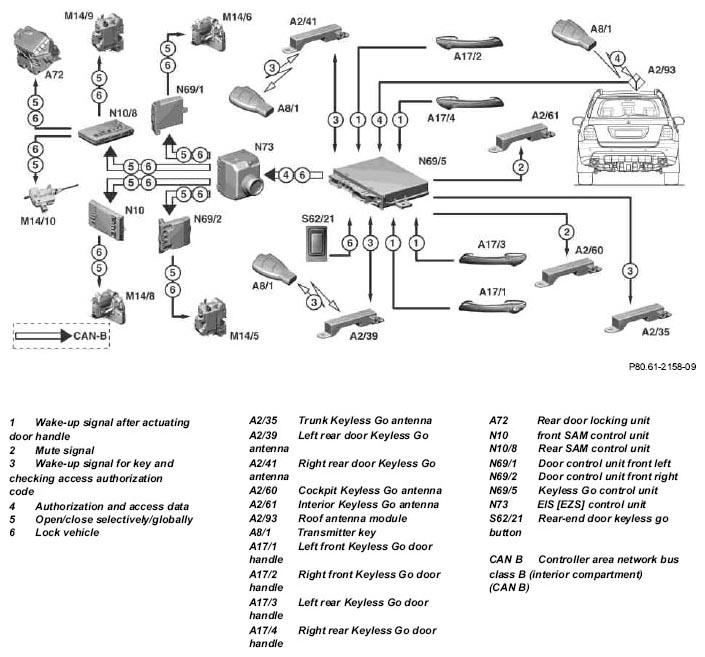

Fig 1: Lock Function Diagram - Illustrated On Model 164.1, Function Sequence For Door Handle Control Point

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements

C. 15 OFF
All doors closed
Transmitter key outside of vehicle
The transmitter key is located in the vicinity (radius approx. 1 m) of a door handle.

Possible system activation

Actuate corresponding button on door handle
Actuate rear-end door Keyless Go button

Function sequence for door handle control point

The capacitive sensor in the door handle recognizes when the corresponding door handle is pulled slightly and transmits a signal to wake up the Keyless Go control unit and the Keyless Go system (KG)

The Keyless Go control unit transmits a signal via the Keyless Go cockpit antenna and Keyless Go interior compartment antenna to mute all transmitter keys in the interior compartment for a certain period of time.

Then a Keyless Go transmitter key should be recognized in the outer range, otherwise locking is not performed.

The access authorization from the Keyless Go transmitter key are received by the roof antenna module and are relayed to the Keyless Go control unit The Keyless Go control unit transmits this message to EIS control unit via the CAN-B bus

The EIS control unit checks the access authorization, after positive check it transmits the "Locking" command via the CAN-B bus. The "Locking" command is transmitted to the left and right front door control unit as well as to the rear SAM control unit. They then lock the door locks, the tank flap and the rear-end door electrically.

Errors occurring when locking are indicated by the instrument cluster (A1).

Function sequence for rear-end door Keyless Go button control point

When the rear-end door Keyless Go button is pressed the Keyless Go system (KG) is woken up The further function sequence is the same as for the door handle control point.

Convenience closing

When the corresponding door handle switch is actuated for longer than t > 1.5 s, the "Convenience closing" command is transmitted to the CAN-B bus.

The windows and tilting/sliding roof (SR) (with power glass tilting/ sliding roof, code 414) are also closed.

The convenience closing function is interrupted by pulling the door handle The windows and the tilting/sliding roof are actuated in the opening direction for approx. 2 s.

	Transmitter key, component description		GF80.57-P-6010GZ
	Keyless Go control unit, component description		GF80.61-P-4200GZ
	Electronic ignition/starter switch control unit (EIS) component description		GF80.57-P-6000GZ
