Removing, installing windowbag - AR91.60-P-0693GZ
MODEL 164
Shown on model 164.1

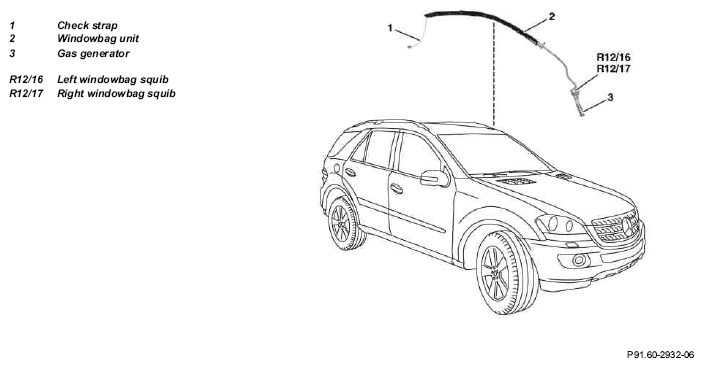

Fig 1: Identifying Check Strap, Windowbag Unit, Gas Generator And Left/Right Windowbag Squib - Shown On Model 164.1
Shown on vehicle with power glass tilting/sliding roof, code 414

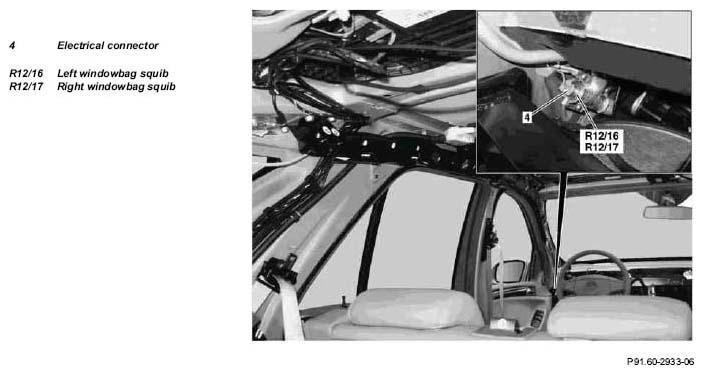

Fig 2: Identifying Electrical Connector And Left/Right Windowbag Squib - Shown On Vehicle With Power Glass Tilting/Sliding Roof, Code 414

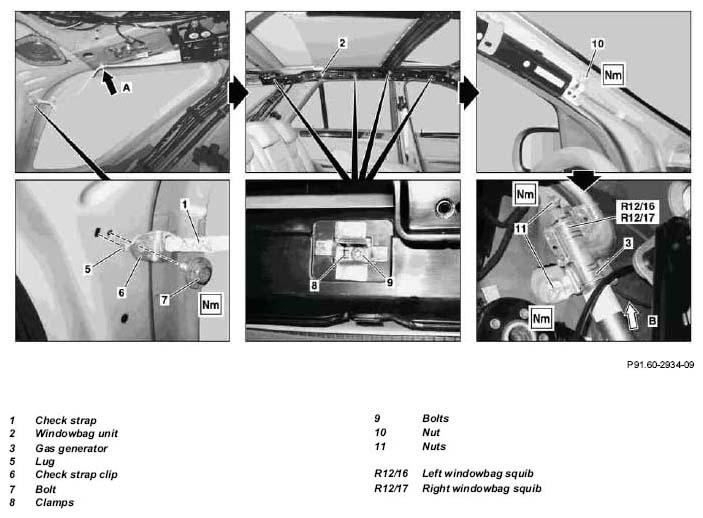

Fig 3: Identifying Check Strap, Bolts, Nuts, Lug, Clamps And Windowcab Unit - Shown On Vehicle With Power Glass Tilting/Sliding Roof, Code 414
Shown on vehicle with power glass tilting/sliding roof, code 414
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Notes on avoiding damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Push front seat all the way back and fully extend the head restraints on the front seats | ||
| 2 | Pull steering column all way out and move all way down | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 3 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 4 | Remove headliner | AR68.30-P-4300GZ | |
| 5 | Remove upper instrument panel section | AR68.10-P-1020GZ | |
| 6 | Detach electrical connector (4) from left windowbag squib (R12/16) or the right windowbag squib (R12/17) | ||
| 7 | Unscrew bolt (7) and remove check strap clip (6) from D-pillar | *BA91.60-P-1005-01H | |
| 8.1 | Remove check strap (1) from clip (arrow A) | ||
| 8.2 | Remove clip (arrow A) from roof frame | ||
| 9 | Unscrew four bolts (9) of windowbag unit (2) | ||
| *BA91.60-P-1006-01H | |||
| 10 | Remove bracket for grab handle on roof | ||
| 11 | Unscrew nut (10) | *BA91.60-P-1008-01H | |
| 12 | Remove right air duct on instrument panel | ||
| 13 | Unscrew nuts (11) | *BA91.60-P-1007-01H | |
| 14 | Undo clamps (8) of windowbag unit (2) using the mounting wedge carefully from inside roof frame | ||
| Figure | |||
| 15 | Remove windowbag unit (2) carefully | ||
| Notes on disposing of airbag and emergency tensioning retractor units | All models | OS91.00-P-0001-01A | |
| 16 | Install in the reverse order | ||
| 17 | Check restraint system using STAR DIAGNOSIS diagnostic system | STAR DIAGNOSIS diagnosis system | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 18 | Perform basic programming | AR00.19-P-0200GZ |
AIRBAG
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA91.60-P-1005-01H | Bolt of bracket for windowbag check strap to body | Nm | 8 |
| BA91.60-P-1006-01H | Bolt, windowbag to body | Nm | 8 |
| BA91.60-P-1007-01H | Nut, windowbag to A-pillar at bottom | Nm | 8 |
| BA91.60-P-1008-01H | Nut, gas generator for windowbag to upper A-pillar | Nm | 8 |
