Remove/install frontal acceleration sensor - AR91.60-P-0750GZ

MODEL 164

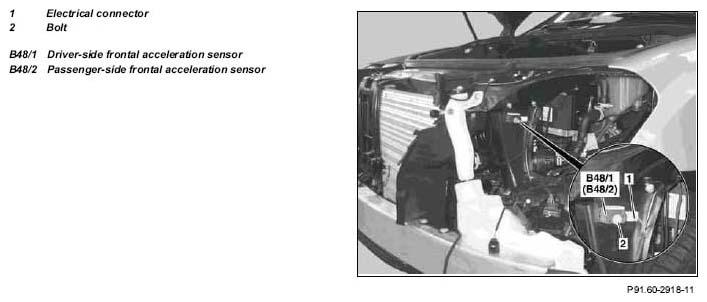

Fig 1: Identifying Frontal Acceleration Sensor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/fire  due to highly flammable materials in the area of damaged xenon bulbs Risk of injury  caused by UV light, hot components on xenon headlamps and glass splinters when xenon bulbs are bursting Risk of poisoning  due to inhaling mercury contact with toxic salts and mercury compounds	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses, and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the working area is sufficiently vapors and when swallowing/coming in ventilated.	AS82.10-Z-0001-01A
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove lamp unit		AR82.10-P-4730GZ
2	Disconnect electrical connector (1)
3	Remove bolt (2)		*BA91.60-P-1001-01H
4	Remove driver-side frontal acceleration sensor (B48/1) or passenger-side frontal acceleration sensor (B48/2)	Installation:  The white plastic plate on the driver-side frontal acceleration sensor (B48/1) must point up. The white plastic plate on the passenger-side frontal acceleration sensor (B48/2) must point down.
5	Install in the reverse order

AIRBAG

Number	Designation		Model 164.1/8
BA91.60-P-1001-01H	Bolt, frontal acceleration sensor to front module support	Nm	8
