Front Passenger Seat Adjustment Control Unit With Memory Connector End View (N32/2)

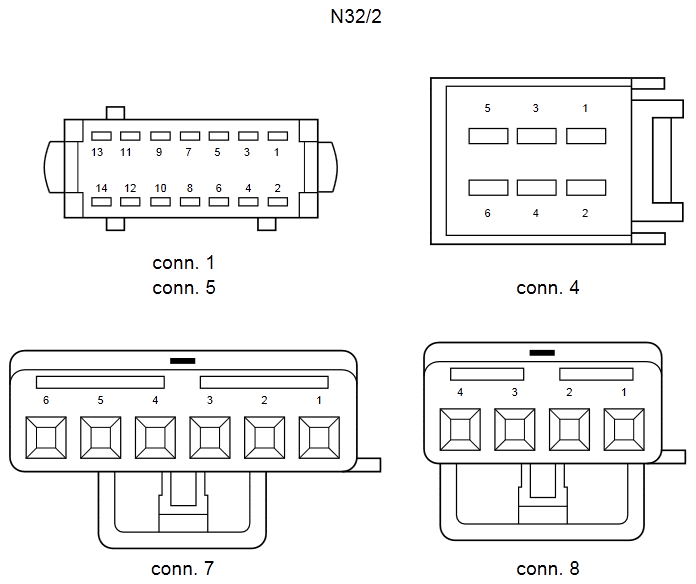

Fig 1: Front Passenger Seat Adjustment Control Unit With Memory Connector End View (N32/2)
G10974318Courtesy of MERCEDES-BENZ USA
