Switching interior lights on / off manually, function - GF82.20-P-2009GZ

MODEL 164

Shown on model 164.1 without Parktronic system (PTS), code 220

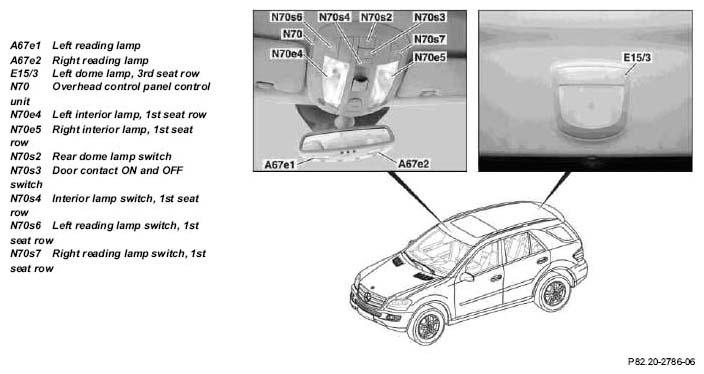

Fig 1: Identifying Interior Light Components Location (Shown On Model 164.1 Without Parktronic System)
G05260246Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

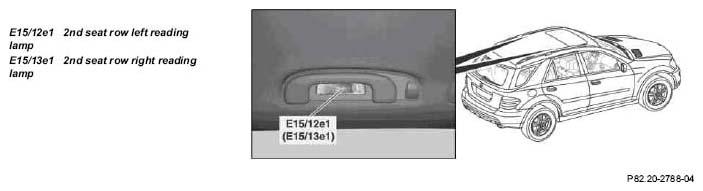

Fig 2: Identifying Interior Light Components Location (Shown On Model 164.1)
G05260247Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

Manual switch on/off of lamps in overhead control panel control unit

By pressing the interior light switch, 1st seat row, the front dome lamp is switched on dimmed. Dimmed switch off of the front interior lamps is done by pressing the interior light switch, 1st seat row or 30 minutes after circuit 15 off.

IMPORTANT A manual switch on automatically interrupts all interior light functions.

Manual switching on and off of the rear dome lamp, 3rd seat row

Pressing the rear dome lamp switch causes the dome lamp, 3rd seat row to be switched on. It is switched off by pressing the switch again or 30 minutes after circuit 15 off.

IMPORTANT For model 164.8 the 3rd seat row dome lamp is also equipped with the 3rd seat row left reading lamp (E15/3e1) and the 3rd seat row right reading lamp (E15/3e2), which are switched on and off via corresponding switches.

Manual switching on and off of the lamps in the inside rearview mirror unit (A67)

Pressing the reading lamp switch switches on the left or right reading lamp in the inside rearview mirror unit. It is switched off by pressing the corresponding switch again, after circuit 15R off and locking the vehicle or 30 minutes after circuit 15 off via the overhead control panel control unit.

IMPORTANT Each status of the circuit 15 is sent by the EIS [EZS] control unit (N73) via CAN-B to the overhead control panel control unit.

Manual switching on and off of the lamps in the 2nd seat row

Pressing the corresponding switch switches on the left reading lamp or right reading lamp, 2nd seat row. It is switched off pressing the corresponding switch again.

IMPORTANT For model 164.8 the 2nd seat row left and right reading lamps are integrated into the corresponding 2nd seat row left dome lamp (E15/12) and 2nd seat row right dome lamp (E15/13).

Overhead control panel control unit, component description GF82.20-P-5216GZ
Inside rearview mirror unit, component description GF68.49-P-2105GZ
