VGS control unit, location/task - GF27.19-P-4013N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341

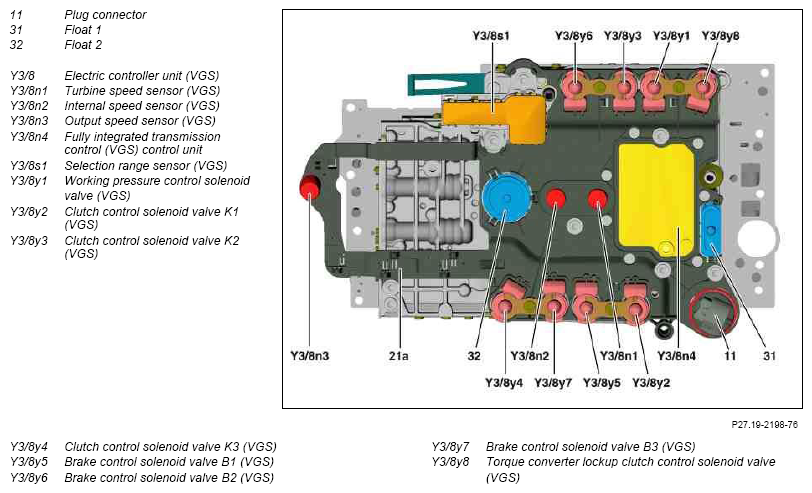

| VGS control unit, location | The fully integrated transmission control (VGS) control unit (Y3/8n4) is integrated into the electric controller unit (VGS) (Y3/8). | |
| VGS [fully integrated transmission control], task | Model 171.4 (except model 171.473/44) except code (428) Steering wheel shift buttons | GF27.19-P-4013-02NK |
| Model 171.4 with code (428) Steering wheel shift buttons Model 171.473 |
GF27.19-P-4013-02NKL | |
| Model 203 except code (428) Steering wheel shift buttons | GF27.19-P-4013-02NP | |
| Model 203 with code (428) Steering wheel shift buttons | GF27.19-P-4013-02NPL | |
| Model 209 except code (428) Steering wheel shift buttons | GF27.19-P-4013-02NQ | |
| Model 209 with code (428) Steering wheel shift buttons | GF27.19-P-4013-02NQL | |
| Model 211, except code (428) Steering wheel shift buttons 463.303/340/341 |
GF27.19-P-4013-02NT | |
| Model 211 with code (428) Steering wheel shift buttons | GF27.19-P-4013-02NTL | |
| Model 219 except code (428) Steering wheel shift buttons | GF27.19-P-4013-02TX | |
| Model 219 with code (428) Steering wheel shift buttons | GF27.19-P-4013-02TXL | |
| Model 215, 220 | GF27.19-P-4013-02N | |
| Model 230 except code (428) Steering wheel shift buttons | GF27.19-P-4013-02NR | |
| Model 230 with code (428) Steering wheel shift buttons | GF27.19-P-4013-02NRL |
