Control unit for electronic selector lever module, task - GF27.19-P-5138-02NT
Transmission 722.9 in model 211, 219 except code (428) Steering wheel shift buttons
Shown on model 211 up to 31.5.04 with M113, with code (219) Distronic (DTR)
Task

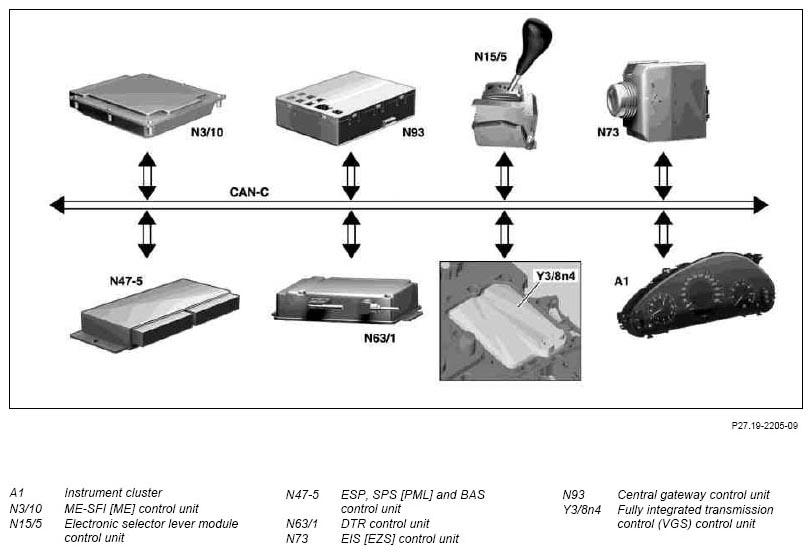

The electronic selector lever module control unit (N15/5) receives digital and analog input signals, converts these and actuates various components or transmits information to various control units via the Controller Area Network bus class C (engine compartment) (CAN-C).
The selector lever positions and touch shifts performed are recognized without contact using the opto-electronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.
Internal input signals:
- Selector lever position
- Transmission mode switch (S16/5)
- Touch button +/-
- Voltage supply
Internal output signals:
- R/P locking solenoid
- Shift gate illumination (circuit 58d)
The following information is received via CAN-C:
Instrument cluster (A1)
- Circuit 58 dimmed
ESP, SPS [PML] and BAS control unit (N47-5) (model 211), ESP control unit (N47-5) (model 219)
- Wheel speed and direction, right rear
- Wheel speed and direction, left rear
- Set braking torque
for EIS control unit (N73)
- Circuit 50
- Tml.15
- Stop light switch (S9/1)
- Stop lamp feedback
- Initialization, personalization, authenticity for stage 3 drive authorization system (DAS 3)
Central gateway control unit (N93)
- Diagnosis request
The following information is sent via CAN-C:
Instrument cluster (A1)
- Selector lever position for gear display (A1p12)
CDI control unit (N3/9), with OM 642, OM 629
- Selector lever position "P", "N"
ME control unit (N3/10), except OM 642, OM 629
- Selector lever position "P", "N"
for EIS control unit (N73)
- Selector lever position for actuation of backup lamp
- Drive authorization system 3 messages (enable request)
Central gateway control unit (N93)
- Selector lever position
- Diagnosis request
Fully integrated transmission control (VGS) control unit (Y3/8n4)
- Selector lever position
- Transmission mode switch (S16/5)
