Control solenoid valve, task - GF27.19-P-5111-01B
Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341 K1 clutch control solenoid valve

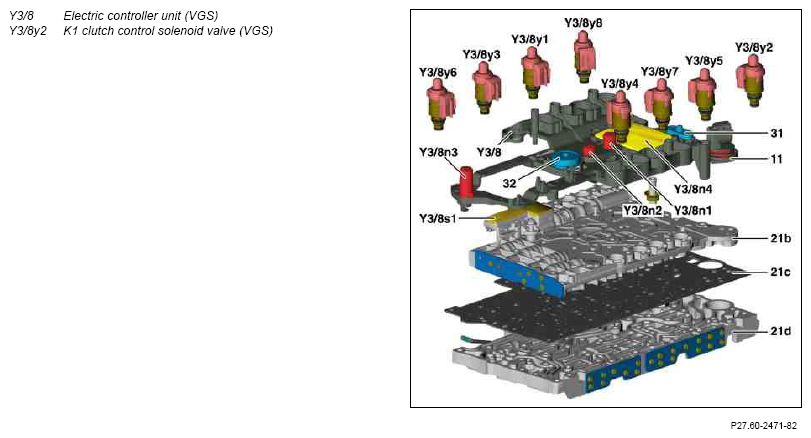

The clutch control solenoid valve K1 (VGS) (Y3/8y2) is actuated by the fully integrated transmission control unit (VGS) (Y3/8n4) and influences the position of the regulating valve K1. The pressure in the multidisk clutch K1 depends on the regulating valve position and therefore on the geometry of the regulating valve K1
The K1 clutch control solenoid valve (VGS) (Y3/8y2) has a rising characteristic. This means that the oil pressure applied in the K1 regulating valve increases as the actuation current increases. In limp-home mode of the fully integrated transmission control (VGS) all the control solenoid valves are de-energized. The K1 clutch control solenoid valve (VGS) (Y3/8y2) thus supplies no pressure.
