Remove/install steering angle sensor - AR46.10-P-0300T

MODEL 211.0/2/6

Up to model year 04

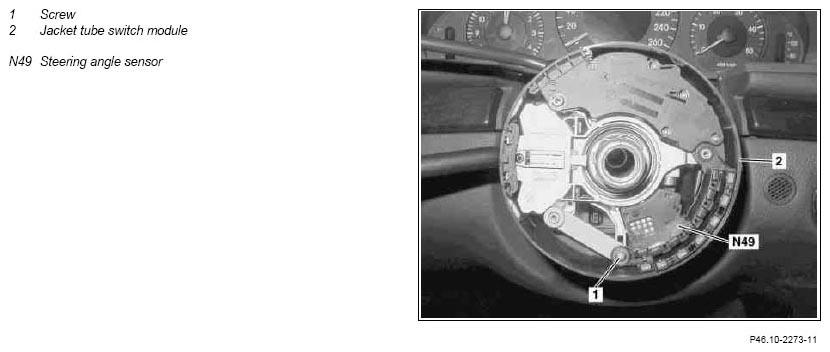

Fig 1: Identifying Steering Angle Sensor, Jacket Tube Switch Module And Screw

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove clock spring contact	AR46.10-P-0200T
2	Remove screw (1)
3	Pull steering angle sensor (N49) out of steering column switch module (2)
4	Install in the reverse order
5	Activate steering angle sensor	AR46.10-P-0300-01T
