Remove/install intake air temperature sensor - AR07.52-P-1465TI

ENGINE 642 in MODEL 211

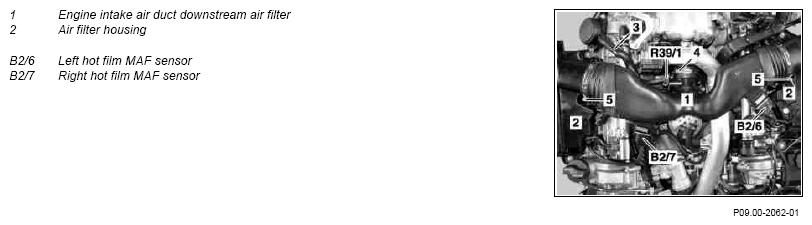

Fig 1: Identifying Intake Air Temperature Sensor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open engine hood and move to upright position		AR88.40-P-1000T
2	Remove engine cover		AR01.10-P-2405TI
3	Remove air filter housing (2).	Remove only on right-hand side.	AR09.10-P-1150TI
4	Remove the engine intake air duct (1) downstream of the air filter	The intake air temperature sensors are located in the hot film MAF sensor on the left (B2/6) and right (B2/7). Installation:  In the event of a defect, the hot film MAF sensor on the left (B2/6) and right (B2/7) must be replaced along with the engine intake air duct downstream of the air filter (1).	AR09.10-P-8130TI
5	Install in the reverse order
