Steering column module location/task - GF54.21-P-4125T

MODEL 211.0/2/6

Shown on Model 211.0

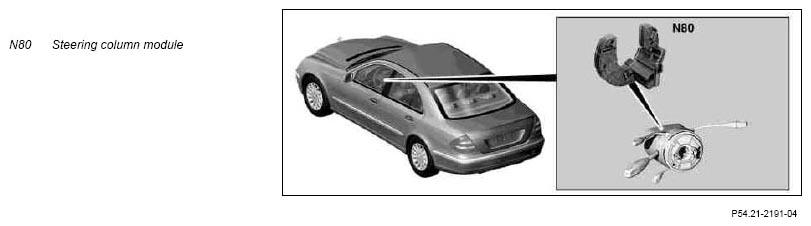

Fig 1: Locating Steering Column Module
G07253700Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Steering column module, location The steering column module (N80) is located on the steering column.
Steering column module, task   GF54.21-P-4104-02T
