Forward travel, function - GF54.65-P-4000T
MODEL 211.0/2 with CODE (220a) Parktronic system (PTS)

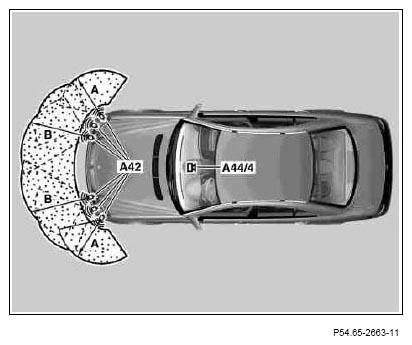

Shown on model 211.0
If the vehicle approaches an obstacle when moving forwards (v 16 km/h), the front Parktronic components are active.
The front sensors (6 pieces) of the front bumper PTS sensor unit (A42) detect obstacles:
- in the range of A (15 cm to 60 cm)
- in the range of B (20 cm to 100 cm)
The driver is alerted visually and acoustically by the PTS warning display, center of instrument panel (A44/4).
| PTS control unit, location/task | GF54.65-P-4100T | |
| Sensors, location/task/function | GF54.65-P-4102T | |
| Warning display, location/task/design/function | PTS warning display, center of instrument panel | GF54.65-P-4104T |
