Flow chart for offline programming with Special Release CD - AH54.21-P-0001-04Z

Offline programming with Special Release CD

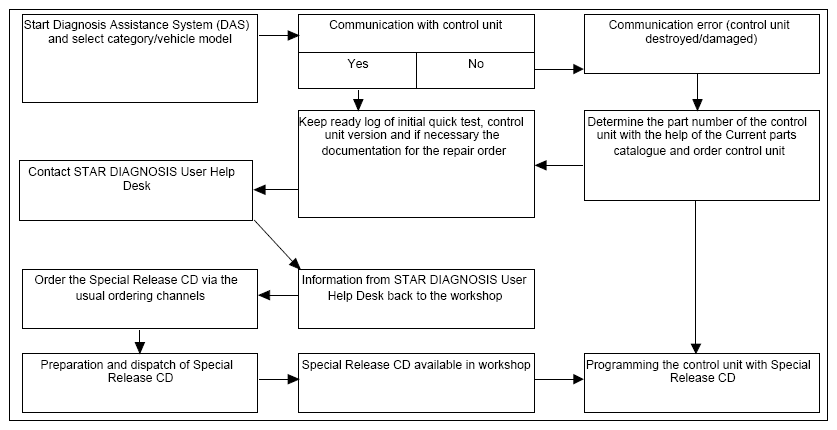

Fig 1: Offline Programming Flow Chart
G07286740Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
