Remove/install power steering pump - AR46.30-P-0500TY

MODEL 219 with ENGINE 113

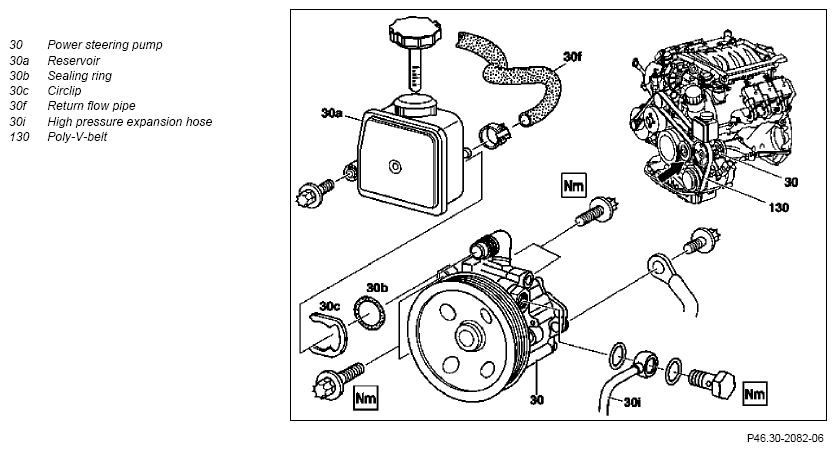

Fig 1: Identifying Power Steering Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove poly-V belt (130)	Engine 113.967	AR13.22-P-1202TY
		Engine 113.990	AR13.22-P-1202TZ
2	Remove air filter housing	Engine 113.967	AR09.10-P-1150TY
		Engine 113.990	AR09.10-P-1150TZ
3	Suction off oil from reservoir (30a) of power steering pump (30)		Figure
4	Detach return line (30f) from reservoir (30a) of power steering pump	Seal the connections.
			*BA46.30-P-1002-01G
			Figure
5	Unscrew high pressure expansion hose (30i) from power steering pump (30).	Replace sealing rings.
			*BA46.30-P-1001-01G
6	Unscrew bolt on reservoir (30a)
7	Detach rear ground cable at power steering pump (30)
8	Dismount power steering pump (30) and extend to the front out of the supply reservoir-guide rail	Long bolts at rear, short bolts at front (each 2 pieces).
			*BA46.30-P-1011-01G
9	Remove reservoir (30a), to do so pull out circlip (30c) using suitable screwdriver	The reservoir can also be removed when the power steering pump is installed. Install new sealing ring (30b). Check circlip (30c) is correctly seated.
10	Install in the reverse order
11	Fill power steering pump and bleed		AR46.30-P-0010TY

POWER STEERING PUMP

Number	Designation			Model 219 with engine 113
BA46.30-P-1001-01G	Banjo bolt of high pressure flexible hose to power steering pump		Nm	45
BA46.30-P-1002-01G	Return line to power steering pump		Nm	2
BA46.30-P-1011-01G	Bolt, power steering pump to timing case cover	M8X30	Nm	20
		M8X34	Nm	35

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
