Audio Gateway Control Module Connector End View (N93/1)

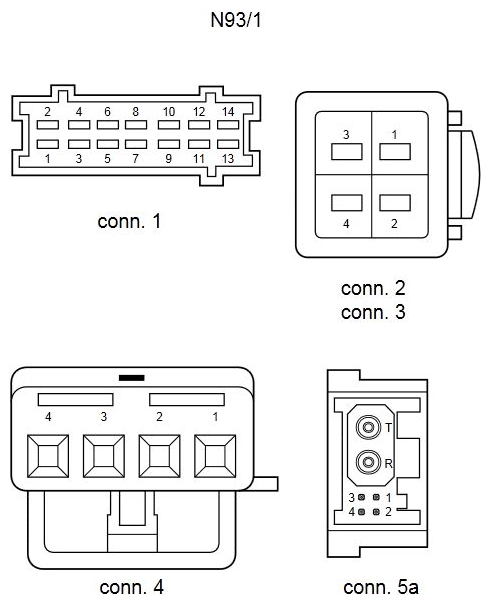

Fig 1: Audio Gateway Control Module Connector End View (N93/1)

G11072832

Courtesy of MERCEDES-BENZ USA
