Front Passenger Front Seat Adjustment Control Module With Memory Connector End View (N32/2)

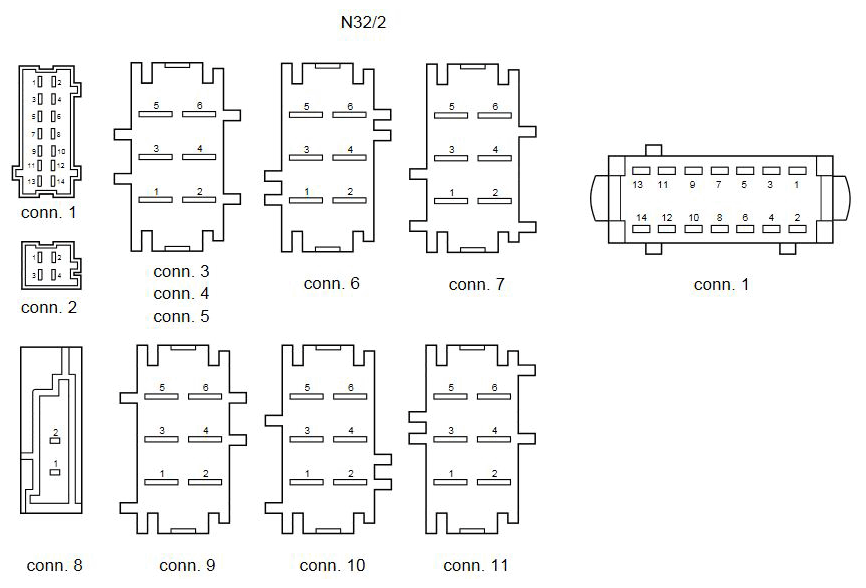

Fig 1: Front Passenger Front Seat Adjustment Control Module With Memory Connector End View (N32/2)
G11072807Courtesy of MERCEDES-BENZ USA
