Remove/install button unit on multifunction steering wheel - AR54.25-P-2840R
MODEL 171.4, 219.3 as of 3.3.08, 230.4 as of 29.1.08
MODEL 171.4, 219.3, 230.4 with CODE (809) Model year 2009
MODEL 164, 251 as of Model Year 9
Shown on model 230

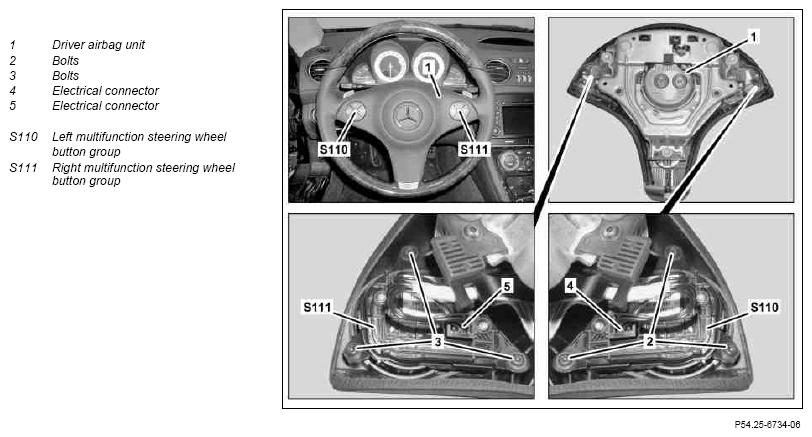

Fig 1: Identifying Multifunction Steering Wheel Button Unit Remove/Install Component - Shown On Model 230
| Remove/install | |||
| 1 | Remove driver air bag unit (1) | AR91.60-P-0660RA | |
| 2 | Undo screws (2) and remove left multifunction steering wheel button group (S110) far enough from the driver air bag unit (1) until the electrical connector (4) is accessible | When removing the left multifunction steering wheel button group (S110). | |
| 3 | Undo screws (3) and remove right multifunction steering wheel button group (S111) far enough from the driver air bag unit (1) until the electrical connector (5) is accessible | When removing the right multifunction steering wheel button group (S111). | |
| 4 | Unplug electrical connector (4 or 5) and remove left multifunction steering wheel button group (S110) or right multifunction steering wheel button group (S111) from driver airbag unit (1). | ||
| 5 | Install in the reverse order |
