Fuse assignment of fuse and relay box in trunk - GF54.15-P-1256-06LE

Fuse and relay box in trunk

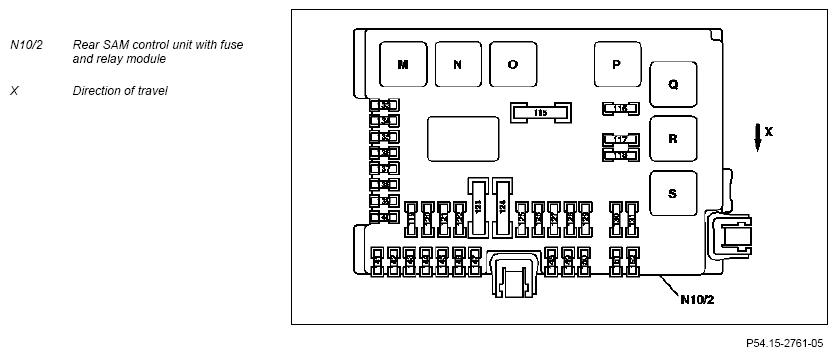

Fig 1: Identifying Rear SAM Control Unit With Fuse And Relay Module And Direction Of Travel
G07539272Courtesy of MERCEDES-BENZ USA
Fuse Clamping device Cable ID (cable fused) Fused function Rating in amperes (A)
f115 87 4.0 RDBU
  • Heated rear window (R1)
 50
f116 87 0.75 RDGY Valid for engine 157, 275, 278  :
  • Charge air cooler circulation pump (M44)

Valid for engine 156  :
  • Engine coolant circulation pump (M45)

Valid for model 221.095/195:  Fused via power electronics circulation pump 2 relay (K108/1):
  • Power electronics circulation pump 2 (M13/9)
 10
f117 87 2.5 RDWH
  • Rear cigar lighter (R3/1)
 15
f118 87 2.5 RDBK Valid for model 221 with engine 629, 642  :
  • Fuel pump (M3)
 30
1.5 BKPK Valid for model 221.095/195:  Fused via power electronics circulation pump 1 relay (K108):
  • Power electronics circulation pump 1 (M13/8)
 15
1.0 RDWH Valid for model 642.8 and engine 651 as of 1.6.11:
  • Refrigerant compressor with magnetic clutch (A9/7)
 15
f119 30g 0.5 RDWH
  • Front central operating unit (A40/9)
 7.5
f120 30g -
  • Spare
 -
f121 30g 2.5 RDWH Valid up to 31.5.09 (without code (810) Sound system), as of 1.6.10 without code (810) Sound system) and without code (811) Advanced sound system  :
  • Audio tuner control unit (N93/1)
 10
f122 30g 1.5 RDBU
  • COMAND controller unit (A40/3)
 7.5
f123 30g 6.0 RDWH Valid for model 221  :
  • Right front reversible emergency tensioning retractor (A76/1)
 40
f124 30g 6.0 RD Valid for model 221  :
  • Left front reversible emergency tensioning retractor (A76)
 40
f125 30g 0.75 RD Valid for code (813) Voice control system (VCS) up to 31.5.09  :
  • Voice control system (VCS) control unit (N41/3)
 5
f126 30g 2.5 RD
  • Overhead control panel control unit (N70)
 25
f127 30g 4.0 RDYE Valid without code (409) Left/right front multicontour seats and without code (432) Left and right dynamic multicontour seat  :
  • Lumbar pump (M25/1)

Valid for code (409) Left/right front multicontour seats  :
  • Multicontour seat pneumatic pump (M40)

Valid for code (432) Left and right dynamic multicontour seat  :
  • Pneumatic pump for dynamic seat control (M40/1)
 30
f128 30g 4.0 RDVT Valid for model 221 with engine 272, 276, 642
Valid for engine 156, 157, 273, 275, 278  :
  • Fuel pump control unit (N118)
 25
f129 30g 1.5 RD Valid for code (386) Preinstallation for telephone "cell phone", UPCI system up to 31.5.09  :
  • UPCI (Universal Portable Cell Phone Interface) control unit (N123/1)
 25
f130 30 4.0 RDBU
  • Electric parking brake controller unit (A13)
 30
f131 30 0.75RDBK
  • Rear window antenna amplifier module (A2/12)
 7.5
f133 15 2.5 RDBK Valid for code (550) Trailer hitch  :
  • Trailer recognition control unit (N28/1)
 15
15 0.5 GNRD Valid as of 1.9.10 with code (218) Reversing camera  :
  • Reversing camera (B84/3)
 5
f134 15 1.5 PKWH
  • Luggage compartment socket (X58/12)
 15
f135 15 0.75RDBK Valid for code (233) DISTRONIC PLUS up to 31.8.10 or for code (234) Blind Spot Assist or for code (239) Adaptive cruise control Plus Light  :
  • Radar sensors control unit (SGR) (N62/1)

Valid for code (220) PARKTRONIC or code (230) Exclusive parking assist  :
  • PTS control unit (N62)
 7.5
f136 15 0.75 BKBU Valid for model 221 with engine 642.8  :
  • AdBlue® control unit (N118/5)
 7.5
f137 15R 0.5 GNRD Valid as of 1.9.10 with code (218) Reversing camera  :
  • Reversing camera (B84/3)
 7.5
f138 15R 0.5 GNRD Valid up to 31.8.10 on vehicles for Taiwan with code (355) Telephone and GPS antenna for navigation retrofit  :
  • Navigation processor (A2/30)

Valid for code (359) TELE AID emergency call system  :
  • Emergency call system control unit (N123/4)

Valid for code (498) Japanese version  :
  • TV/tuner connector (X1/28)
 5
f139 87 1.5 RDWH Valid for code (308) Cooling compartment in center rear backrest
  • Rear backrest refrigerator box (A39/1)
 15
f140 87 2.5 RDWH
  • Rear cigar lighter with ashtray illumination connector (R3/1x1) Valid for code (U80) 115 V socket  :
 15
1.0 PKGN
  • 115 V socket (X58/34)
f141 30g 0.5 RD Valid for code (218) Backup camera and code (498) Japan version
  • Reversing camera control unit (N66/2)

Valid up to 31.8.10 for code (218) Reversing camera and without code (498) Japan version
  • Reversing camera power supply module (N66/10)
 5
f142 30g 0.75 RDWH Valid for code (220) PARKTRONIC or code (230) Exclusive parking assist  :
  • PTS control unit (N62)

Valid for code (233) DISTRONIC PLUS up to 31.8.10 or for code (234) Blind Spot Assist or for code (239) Adaptive cruise control Plus Light  :
  • Radar sensors control unit (SGR) (N62/1)

Valid as of 1.9.10 for code (233) DISTRONIC PLUS and code (237) Active Blind Spot Assist or code (238) Active Lane Keeping Assist  :
  • Video and radar sensor system control unit (N62/2)
 7.5
f143 30g 2.5 RDWH Valid for model 221 with code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints or Code (402) Rear comfort seats, incl. seat heaters and seat ventilation or code (872) Electric seat heaters for left and right rear seats  :
  • Rear seat control unit (N25/6)
 25
f144 30g 2.5 RDWH Valid for model 221 with code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints or Code (402) Rear comfort seats, incl. seat heaters and seat ventilation or code (872) Electric seat heaters for left and right rear seats  :
  • Rear seat control unit (N25/6)
 25
f145 30g 2.5 RDYE Valid for model 221 with code (550) Trailer hitch  :
  • Trailer hitch socket (13-pin) (X58)
 20
f146 30g 2.5 RDGN Valid for model 221 with code (550) Trailer hitch  :
  • Trailer recognition control unit (N28/1)
 25
f147 30g -
  • Spare
 -
f148 30g 2.5 RD Valid for code (413) Panoramic glass sunroof with top sliding sunroof  :
  • Panoramic sliding sunroof circuit 30 connector sleeve (Z7/80)
 25
f149 30g 2.5 RDWH Valid for code (413) Panoramic glass sunroof with top sliding sunroof  :
  • Panoramic sliding sunroof control module (A98)
 25
f150 30g 0.75 RD Valid for code (863) Digital/analog TV tuner  :
  • TV combination tuner (analog/digital) (A90/1)

Valid for code (498) Japanese version  :
  • TV/tuner connector (X1/28)
 7.5
f151 30g 2.5 RD Valid for model 221 with code (550) Trailer hitch as of 1.6.09  :
  • Trailer recognition control unit (N28/1)
 20
f152 30g 2.5 RDWH Valid for code (U80) 115 V socket  :
  • DC/AC converter control unit (N24/3)
 25
