Seat occupancy monitor with child-restraint recognition feature, location/task/design/function - GF91.60-P-4008PP
MODELS 203.0 /2 /7 except CODE (494a) USA version
MODELS 203.0 /2 up to 31.5.04, 203.7 up to 23.4.04 with CODE (494a) USA version

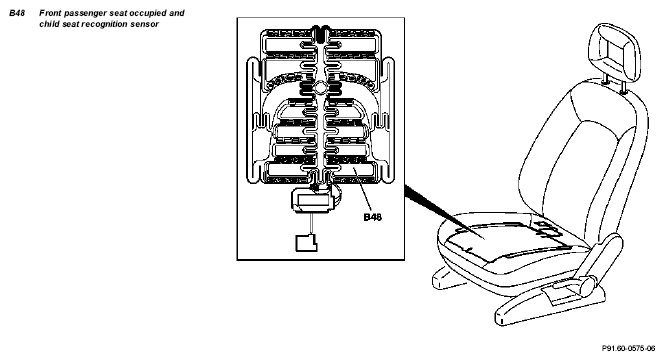

| Seat occupied recognition sensor with automatic child seat recognition, location | The passenger seat occupied and child seat recognition sensor (B48) is integrated into the seat cushion on the front passenger seat. | ||
| Seat occupied recognition sensor with automatic child seat recognition - task | The seat occupied recognition sensor blocks deployment of the front passenger airbag, sidebag and emergency tensioning retractor when the front passenger seat is not occupied. The automatic child seat recognition blocks deployment of the front passenger airbag when a child seat is in its designated position. | ||
| Seat occupied recognition sensor with automatic child seat recognition - design | GF91.60-P-4008-02PP | ||
| Seat occupied recognition sensor with automatic child seat recognition, function | GF91.60-P-4008-03PP |
