Heated seat/seat ventilation switch, location/design/function - GF91.30-P-3007Q

MODEL 209.3 up to 1.6.03 with CODE (873) Electrically heated left and right front seats

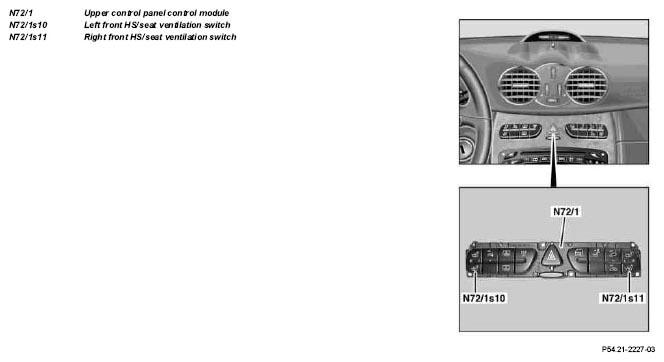

Fig 1: Identifying Heated Seat/Seat Ventilation Switch, Location - Model 209.3 Up To 1.6.03 With Code (873)

	Seat heating/seat ventilation switches, location	The left front HS/seat ventilation switch (N72/1s10) and right front HS/seat ventilation switch (N72/1s11) are integrated into the upper control panel control module (N72/1).
	Heated seats/seat ventilation switches, design	The left front HS/seat ventilation switch (N72/1s10) and right front HS/seat ventilation switch (N72/1s11) are designed as a rocker switch. Two LEDs display the respective switching state of the heated seats.
	Seat heating/seat ventilation switches, function	Actuation of the left front HS/seat ventilation switch (N72/1s10) or the right front HS/seat ventilation switch (N72/1s11) is read in by the upper control panel control module (N72/1) and circuit 30 is switched through.
