Front seat belt tensioner, location/task/design/function - GF91.40-P-4000PP
MODELS 203.0/ 2/ 7
Illustrated on Model 203.0

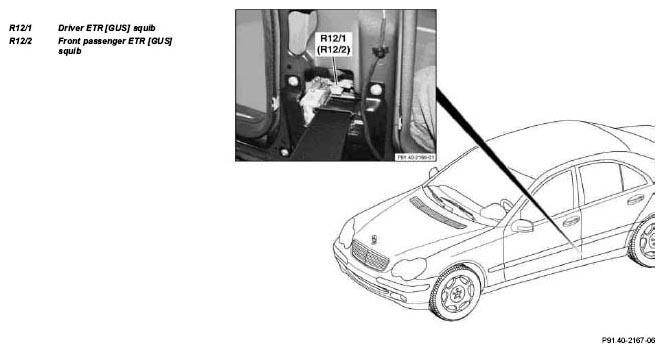

| Front emergency belt tensioner, location | The driver ETR squib (R12/1) and the front passenger ETR squib (R12/2) are in the associated B-pillar. | ||
| Front emergency belt tensioner - task | The emergency tensioning retractor serves to take up the slack in the seat belt in the event of a crash (frontal or rear end collision) and prevents the seat belt's film reel effect. The close-fitting seat belt means that vehicle occupants are exposed to the deceleration forces acting on the body at an earlier stage. | ||
| Front emergency belt tensioner - design | GF91.40-P-4000-02PP | ||
| Front emergency tensioning retractor, function | GF91.40-P-4000-03PP |
