Front seat adjustment switch group, location/task - GF91.29-P-2120PP
MODELS 203.0 /2 except CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory except CODE (242b) Electrically adjustable front passenger seat with memory
Shown on driver's seat in model 203.0 up to 23.4.04

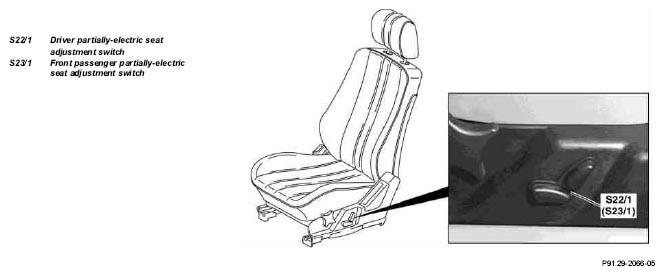

Fig 1: Identifying Front Seat Adjustment Switch - Shown On Driver'S Seat In Model 203.0 Up To 23.4.04
| Front seat adjustment switch group, location | The partially electric seat adjustment switch, driver's side (S22/1) and the partially electric seat adjustment switch, front passenger side (S23/1) are in the respective seat frame. | ||
| Front seat adjustment switch group, task | Actuation (voltage supply) of driver seat raise/ lower motors and backrest motors. |
