Front seat adjustment motor, location/task - GF91.29-P-4101PP
MODELS 203.0 /2 except CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory except CODE (242b) Electrically adjustable front passenger seat with memory

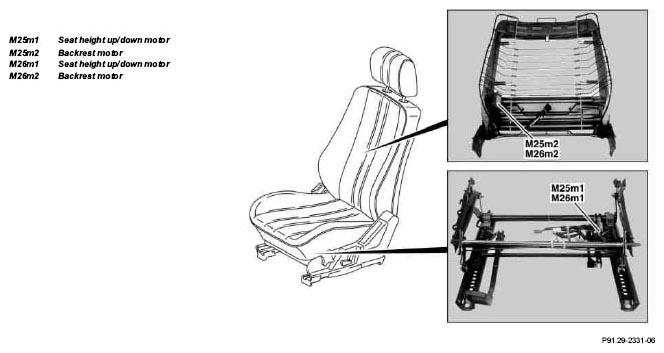

Shown on driver seat in model 203.0 up to 23.4.04
| Front seat adjustment motor, location | The seat height up/down motor (M25m1 or M26m1) and the backrest motor (M25m2 or M26m2) are in the relevant seat frame. | ||
| Front seat adjustment motor, task | The seat height up/down motor (M25m1 or M26m1) adjusts the height of the relevant seat. The backrest motor (M25m2 or M26m2) adjusts the angle of the relevant backrest. |
