Front seat adjustment motor group location/function - GF91.29-P-2103R
MODEL 230

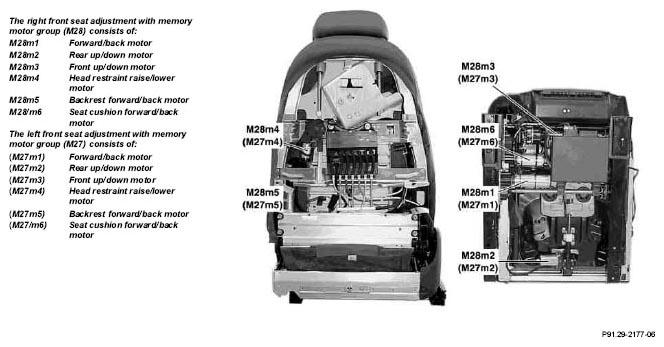

Front seat adjustment motor group, shown at front passenger seat
| Front seat adjustment motor group, location | The left front seat adjustment with memory motor group (M27) and right front seat adjustment with memory motor group (M28) are located below the seat frame and in the backrest. | ||
| Front seat adjustment motor group, function | The d.c. motors for adjusting the left and right front seat are operated by the left front seat adjustment with memory control module (N32/1) and right front seat adjustment with memory control module (N32/2) . The motors are each equipped with a Hall sensor for detecting the position. |
