Front heated seat switch, location/task - GF91.30-P-3000PP
MODELS 203.0 /2 /7 up to 4/23/04 with CODE (873) Electrically heated left and right front seats
Illustrated on Model 203.0

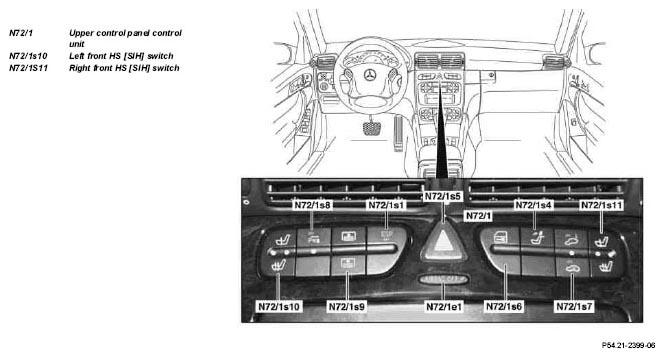

| Switch for heated seats, location | The left front heated seats switch (N72/1s10) and right front heated seats switch (N72/1s11) are integrated into the upper control panel control unit (N72/1). | ||
| Switch for heated seats, design | The left front heated seats switch (N72/1s10) and right front heated seats switch (N72/1s11) are designed as rocker switches and automatically go back to the basic position after being actuated. Two LEDs show the respective switching status of the heated seats (HS). |
