Electric seat adjustment (ESA), function - GF91.29-P-0004PQ
MODELS 203.0 /2 except CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory except CODE (242b) Electrically adjustable front passenger seat with memory

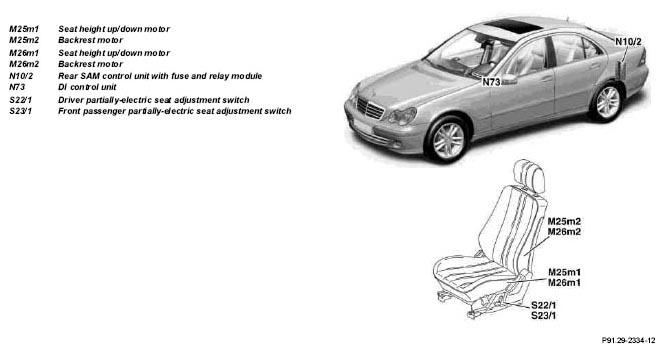

Shown on driver seat in model 203.0 as of 24.4.04
Function requirements
- Circuit 15R ON or
- Circuit 15 ON or
- Door open
Function
Driver and front passenger seats are partially electrically adjustable. Manual adjustment is performed using the driver-side partially electric seat adjustment switch (S22/1) on the driver seat and the front passenger partially electric seat adjustment switch (S23/1) on the front passenger seat.
The rear SAM control unit with fuse and relay module (N10/2) supplies the driver-side partially electric seat adjustment switch (S22/1) and front passenger partially electric seat adjustment switch (S23/1) with voltage.
The driver-side partially electric seat adjustment switch (S22/1) actuates the motor for the driver seat height up and down (M25m1) to achieve the desired seat height and backrest motor (M25m2) for the desired driver-side seat backrest inclination.
The front passenger partially electric seat adjustment switch (S23/1) actuates the motor for the seat height up and down (M26m1) to achieve the desired front passenger seat height and the backrest motor (M26m2) for the desired front passenger seat backrest inclination.
| Electric seat adjustment (ESA), networking of components | GF91.29-P-0004-02PQ | ||
| Rear SAM control unit with fuse and relay module, location / task / design / function | GF54.21-P-4115PP | ||
| Electronic ignition switch control unit, location/ task/design/function | GF80.57-P-4102PP | ||
| Front seat adjustment switch group, location/ task | GF91.29-P-2120PP | ||
| Front seat adjustment motor, location/task | GF91.29-P-4101PP |
