Call up stored seat positions, function - GF91.29-P-2003PP
MODELS 203.0 /2 /7 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory
Shown on vehicles as from 1.7.02
Automatic seat adjustment function
The driver seat can be automatically moved to a previously stored position using the left front door seat adjustment switch group (memory) (S91/2), the front passenger seat using the right front door seat adjustment switch group (memory) (S92/2).
Additionally, on the driver side, each memory contains the positions of
- the steering column,
- the left electrically adjustable and heated outside mirror and
- the right electrically adjustable and heated outside mirror and by the Flexible Service System WS/FSS.
Function requirements
- Circuit 15R ON,
- Circuit 15 ON,
- Particular door open,
- Voltage not to high or too low
- Normalization of driver or front passenger seat,
- No manual seat adjust request,
- No manual steering column adjust request or
- No manual outside mirror adjust request.
Function

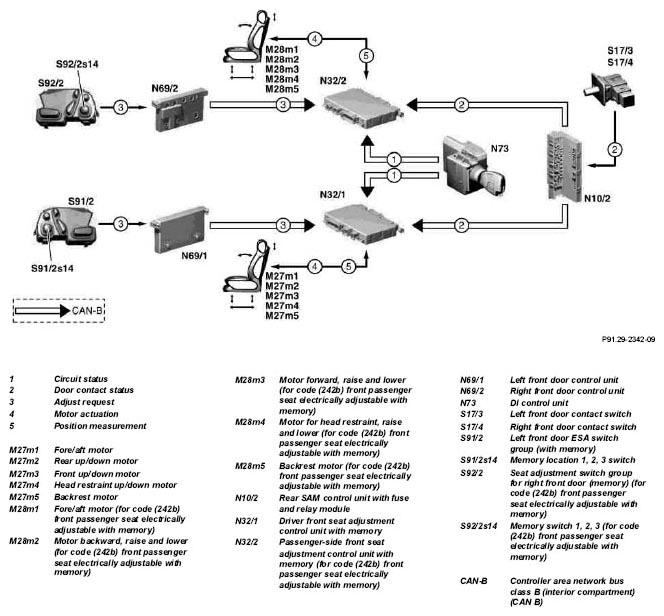

In order to be able to move to a stored seat position, the corresponding memory switch 1, 2, 3 (S91/2s14 or S92/2s14) on the left front door seat adjustment switch group (memory) (S91/2) or on the right front door seat adjustment switch group (memory) (S92/2) has to be held pressed until the stored position is reached.
Actuation of the motors (M27m1, M27m2, M27m3, M27m4, M27m5, M28m1, M28m2, M28m3, M28m4 or. M28m5) up to the stored position is performed by the driver-side front seat adjustment control unit with memory (N32/1) or the passenger-side front seat adjustment control unit with memory (N32/2).
Collision prevention function
In order to avoid any collision of the head restraints with the headliner, the head restraint motor, raise and lower (M27m4) or the head restraint motor, raise and lower (M28m4) is actuated last.
