Belt tension sensor, location/task - GF91.60-P-4107PM

MODELS 203.0 /2 as of 1.6.04, 203.7 as of 24.4.04 with CODE (494a) USA version

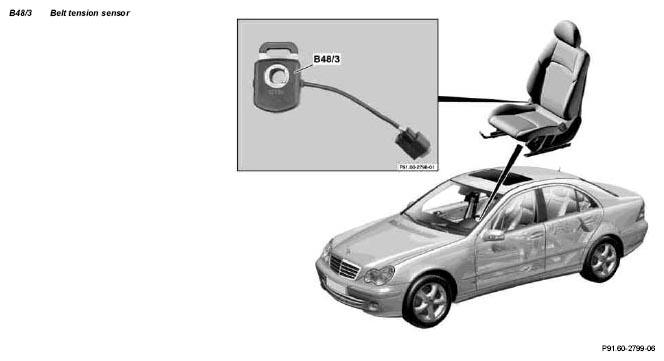

Fig 1: Locating Belt Tension Sensor
G04738204
  Belt tension sensor, location The belt tension sensor (B48/3) is mounted to the right seat frame (models 203.0/2) or in the right B-pillar (model 203.7).
  Belt tension sensor, task   GF91.60-P-4107-02PM
