Airbag OFF indicator lamp, location/task - GF91.60-P-4012PP

MODELS 203.0 /2 /7 up to 23.4.04

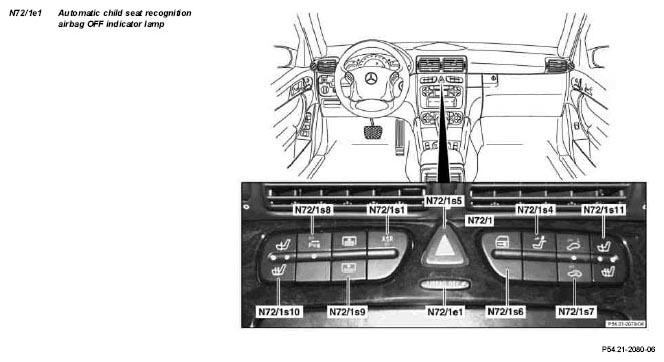

Fig 1: Identifying Airbag Off Indicator Lamp - Models 203.0 /2 /7 Up To 23.4.04
G04738185IMPORTANT
  Airbag OFF indicator lamp, location The automatic child seat recognition airbag OFF indicator lamp (N72/1e1) is located in the upper control panel control unit (N72/1).
IMPORTANT As from 1.6.03 this will be labeled with "PASS. AIRBAG OFF".
  Airbag OFF indicator lamp, task The automatic child seat recognition airbag OFF indicator lamp (N72/1e1) displays the functional availability of the automatic child seat recognition (ACSR) and a front passenger airbag switch off when a specific child seat is detected.
