Airbag OFF indicator lamp, location/task - GF91.60-P-4012PMA

MODELS 203.0 /2 as of 1.6.04, 203.7 as of 24.4.04 with CODE (494a) USA version

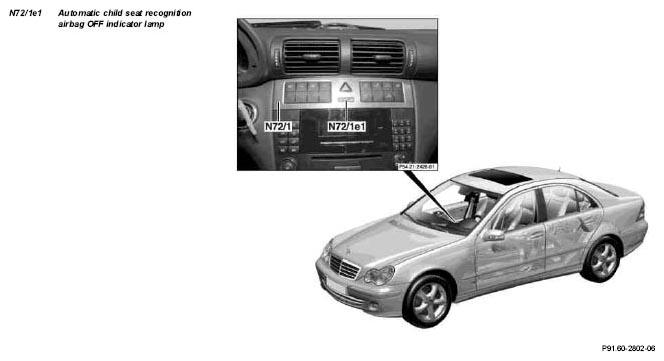

Fig 1: Identifying Airbag Off Indicator Lamp - Models 203.0 /2 As Of 1.6.04, 203.7 As Of 24.4.04 With Code (494A)
G04738184
  Airbag OFF indicator lamp, location The automatic child seat recognition Airbag OFF indicator lamp (N72/1e1) is located in the upper control panel control unit (N72/1).
  Airbag OFF indicator lamp, task The automatic child seat recognition Airbag OFF indicator lamp (N72/1e1) displays the deactivation of the front passenger airbag by constant lighting when a specific child seat is recognized or when an unoccupied front passenger seat is recognized.
