Control unit for electronic selector lever module, task - GF27.19-P-5138-02NP

Transmission 722.9 in model 203 with code (428) Steering wheel shift buttons

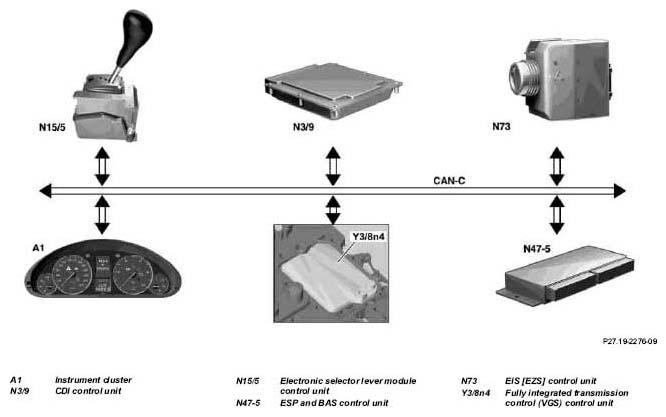

Shown with OM 642

Task

The electronic selector lever module control unit (N15/5) receives digital and analog input signals, converts these and actuates various components or transmits information to various control units via the Controller Area Network bus class C (engine compartment) (CAN-C). The selector lever positions and touch shifts performed are recognized without contact using the opto-electronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Internal input signals:

• Selector lever position
• Transmission mode switch (S16/5)
• Touch button +/-
• Voltage supply

Internal output signals:

• R/P locking solenoid
• Shift gate illumination (circuit 58d)

The following information is received via CAN-C:

Instrument cluster (A1)

• Circuit 58 dimmed

ESP and BAS control unit (N47-5)

• Wheel speed and direction, right rear
• Wheel speed and direction, left rear
• Set braking torque

for EIS control unit (N73)

• Circuit 50
• Tml.15
• BAS release switch (A7/7s1)
• Stop lamp feedback
• Initialization, personalization, authenticity for stage 3 drive authorization system (DAS 3)
• Diagnosis request

The following information is sent via CAN-C:

Instrument cluster (A1)

• Selector lever position for gear display (A1p12)
• Transmission mode switch (S16/5) for transmission mode display (A1p16)

CDI control unit (N3/9), with OM 642

• Selector lever position P/N

ME control unit (N3/10), except OM 642

• Selector lever position P/N

EIS control unit (N73)

• Selector lever position for the actuation of the backup lamp function
• Drive authorization system 3 messages (enable request)
• Diagnosis request

Fully integrated transmission control (VGS) control unit (Y3/8n4)

• Selector lever position
• Transmission mode switch (S16/5)
