Steering column adjustment motor group, location/task/design/ function - GF46.15-P-4101R
MODEL 230

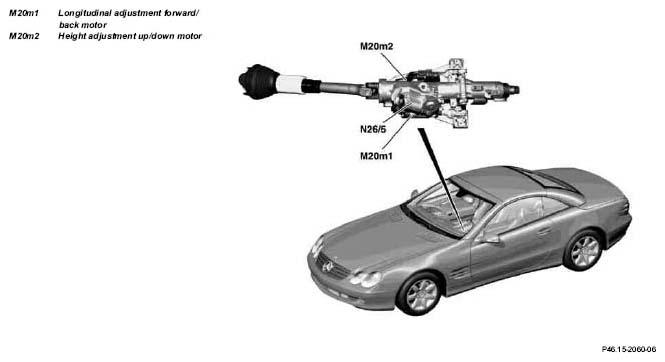

| Steering column adjustment motor group, location | The steering column adjustment motor group (M20) is located on the steering column. | ||
| Steering column adjustment motor group, task | Vertical and longitudinal adjustment of the steering column. | ||
| Steering column adjustment motor group, design | The longitudinal adjustment forward/back motor (M20m1)
and the height adjustment up/down motor
are DC motors whose speed is related to the size of the actuating voltage. They are each equipped with a Hall sensor for measuring position. |
||
| Function of steering column adjustment motor group | The longitudinal adjustment forward/back motor (M20m1) moves the steering column towards or away from the driver. The height adjustment up/down motor (M20m2) adjusts the height of the steering column. |
