Fuel injector, location/task/design/function - GF07.03-P-5004M: Notes

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230

ENGINE 275.953 in MODEL 216, 221

ENGINE 275.954 in MODEL 230

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230

ENGINE 275.982 in MODEL 216, 221

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

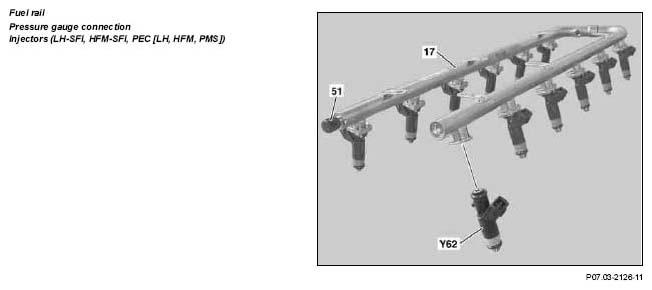

Fig 1: Identifying Fuel Injector Location

Fuel injector, location		GF07.03-P-5004-01M
Fuel injector, task	Spraying the fuel onto the injectors in the form a finely atomized spray
Fuel injector, design		GF07.03-P-5004-03M
Fuel injector, function		GF07.03-P-5004-02M
