Diagnostic connector, location/task/design/function - GF54.22-P-2100R: Notes
MODEL 230

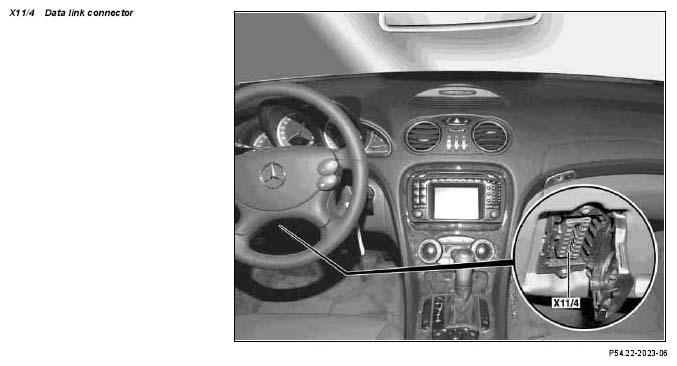

| Diagnostic connector, location | The diagnostic connector (X11/4) is in the driver's side footwell. | ||
| Diagnostic connector, task | The 16-pin diagnostic connector (X11/4) provides the link between the Diagnosis Assistance System (DAS) and the control module K-wires in the vehicle. | ||
| Diagnostic connector, design | GF54.22-P-2100-02R | ||
| Diagnostic connector, function | The diagnostic connector (X11/4) bundles the control module K-wires in the vehicle in a fixed connector. In order to output faults, the K-wires must be active, so that the control module fault codes can be read out. |
