Overhead control panel control module, location/purpose/design/function - GF82.20-P-4101R: Notes
MODEL 230

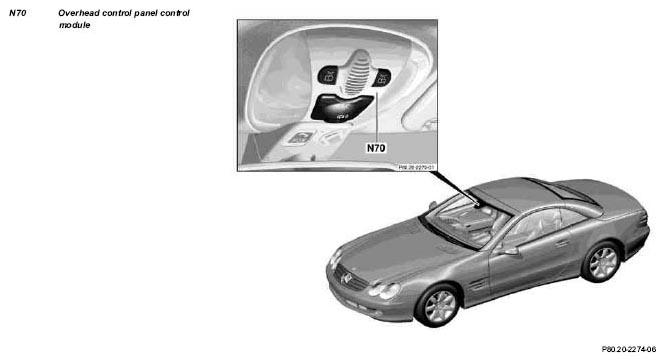

| Overhead control panel control module, location | The overhead control panel control module (N70) is located in the front roof area in the center of the passenger compartment. | ||
| Overhead control panel control module, purpose | GF82.20-P-4101-02R | ||
| Overhead control panel control module, design | GF82.20-P-4101-03R | ||
| Overhead control panel control module, function | The overhead control panel control module (N70) operates with its own microprocessor, which reads in signals, exchanges data with the interior CAN and actuates appropriate semi-conductor switches. |
