Rear door power window switch, location/task/design/function - GF72.29-P-4104T: Notes
MODEL 211.0 /2 /6
Illustrated on right rear door
On model 211.6, the number of the power window motors and door control modules in the rear can vary depending on the equipment and special body

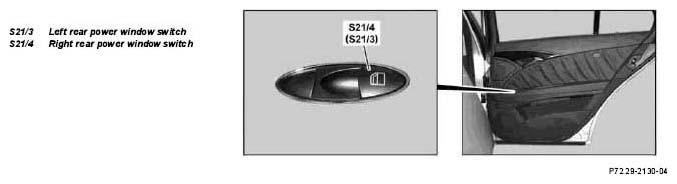

| Rear door power window switch, location | The left rear power window switch (S21/3) and right rear power window switch (S21/4) are located in the front area of the corresponding inner door paneling | ||
| Rear door power window switches, task | The switches serve a command input for opening and closing the corresponding windows and relay the actuation request to corresponding rear door control module. | ||
| Rear door power window switch, design | The switches are rocker switches with five mechanical positions. | ||
| Rear door power window switch, function | GF72.29-P-4104-02T |
