Temperature Sensor, Location/Task/Design/Function: Notes

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

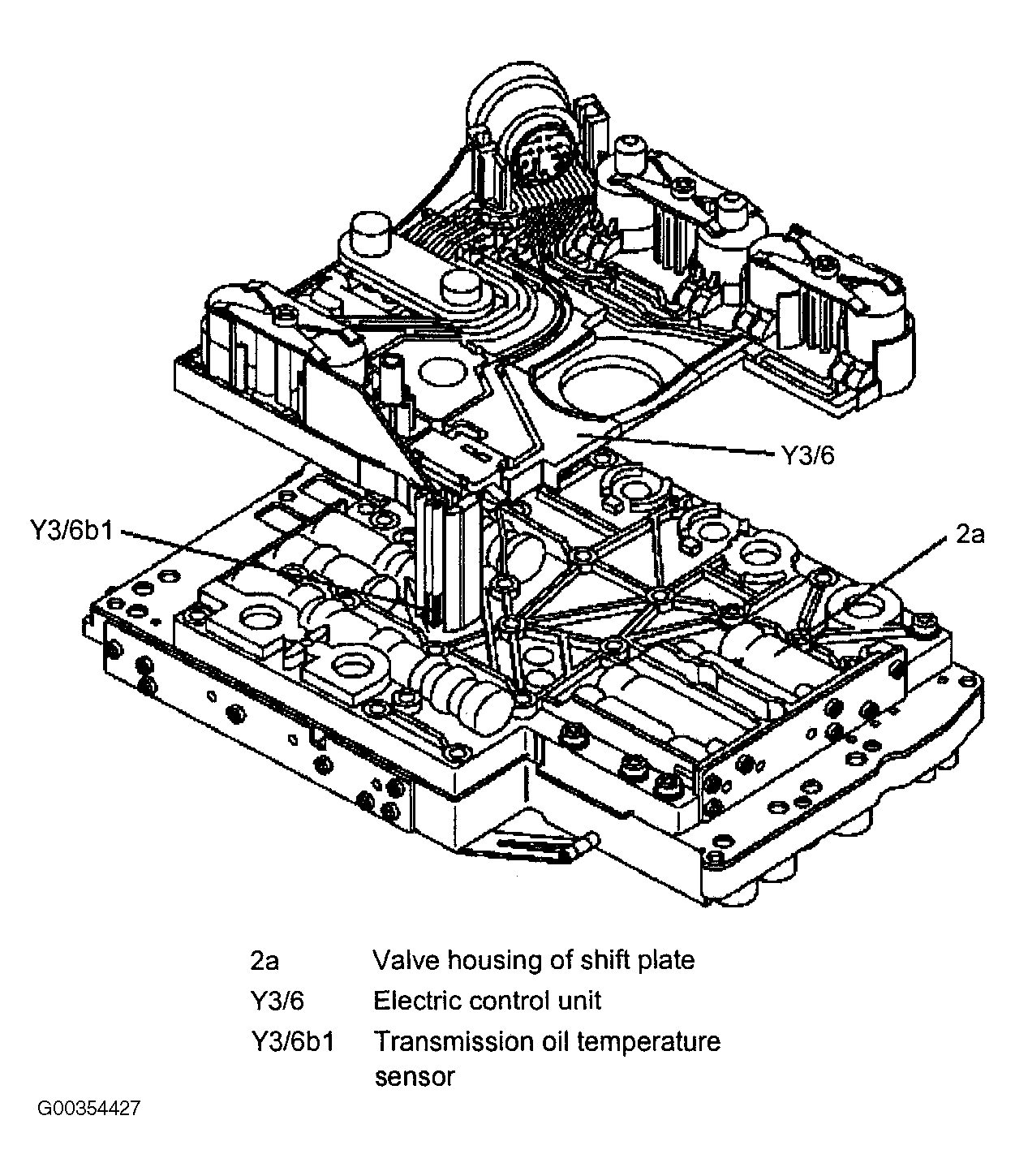

Fig 1: Temperature Sensor, Location/Task/Design/Function
G00354427Courtesy of MECHANICS MONTHLY MAGAZINE

  1. Temperature Sensor, Location

    The transmission oil temperature sensor (Y31/6bl) is located in the electrical control unit (Y316) and is permanently connected to the conductor tracks.

  2. Temperature Sensor, Task

    To measure the temperature of the transmission oil and pass the temperature to the ETC control unit (N15/3) as an input signal.

  3. Temperature Sensor, Design

    Temperature-dependent resistor (PTC).

  4. Temperature Sensor, Function

    See TEMPERATURE SENSOR, FUNCTION  .
