R/P Lock, Location/Task/Design/Function: Notes

WARNING: This page is about a different car, the 2004 Mercedes-Benz C230 and 2003 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

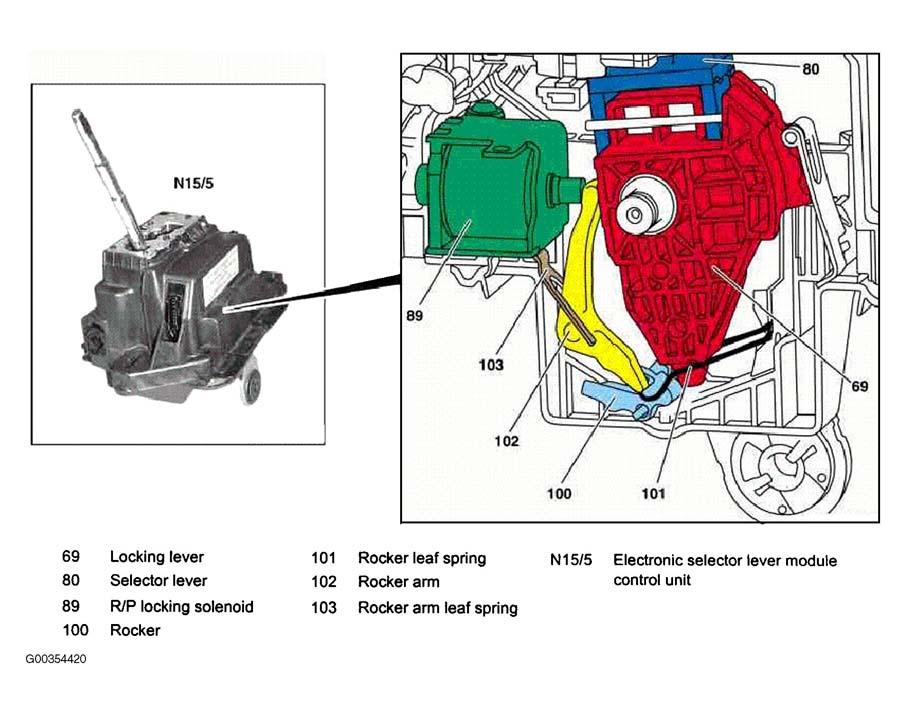

Fig 1: R/P Lock, Location/Task/Design/Function

G00354420

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

R/P Lock, Location

The R/P lock is integrated in the electronic selector lever module control unit (N15/5).

R/P Lock, Task

Depending on the prerequisite, the R/P-lockout prevents a shift out of selector lever position "P" or a changeover to selector lever position "R" from "N".

R/P Lock, Design

The R/P lock consists of:
- Locking lever (69).
- R/P locking solenoid (89).
- Rocker (100).
- Leaf spring of rocker (101).
- Rocker arm (102).
- Leaf spring of rocker arm (103).

R/P Lock, Function

See R/P LOCK, FUNCTION .
